Further To 1: Fitting The Tire On The Rim
Remove rubber residues and dried-on tire paste from the rim, especially from the rim bead and the hump.
Examine rim for damage; remove old balancing weights.
Use the prescribed tire mounting paste (only TIPTOP Universal, order no. 593 0601, 3.5 kg bucket, or Contifix) so that the tire does not turn on the rim the first time the car is driven, thereby counteracting all your careful work. If the tire turns by as little as 20 mm with respect to the rim, this can worsen an optimum balancing result.
Fit tire on the rim. When doing so, it is a good idea - and even necessary in some cases - to fit the tire in a favorable position with respect to the wheel (matching). Compare Controlled and Uncontrolled matching below.
- Risk of squashing or bruising Use a tire filling cage.

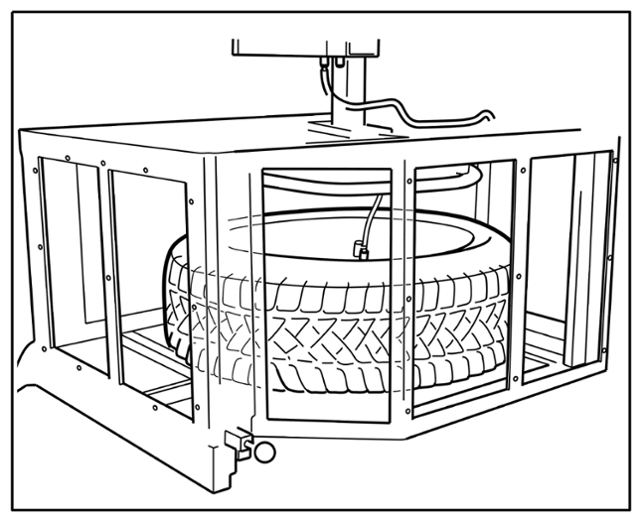

Tire filling cage
Fill tire. Important: By the time the pressure reaches 3.3 bar (max. 4.0 bar in the tire filling cage), at the latest, the tire beads (coming out of the rim well base) must jump over the hump of the rim bead in order to prevent fractures or damage to the bead core. Interrupt the process if necessary and generously lubricate all necessary surfaces with the prescribed sliding compound (tire mounting paste). Then repeat the process.
-
IMPORTANT: Damage to the bead core resulting from incorrect tire assembly/disassembly will cause an increase in fluctuations in power (radial/lateral fluctuation in power). This is apparent when you roll the tire on the driving surface.
Uncontrolled matching: Turn the tire on the wheel by 90° or 180° if necessary in order to achieve an acceptable value with regard to rolling smoothness (true running, imbalance and distribution of balance weights).
Controlled matching: With a balancing machine with matching program. In most cases, this produces an even better result with regard to the rolling smoothness (true running, imbalance and distribution of the balance weights) than can be achieved with uncontrolled matching.
Check the fit of the tire on the rim using the bead centring line.
Set the prescribed tire pressure.
