Inspection During Intermediate Maintenance

WARNING: This page is about a different variant/trim than selected.
  1. Visually inspect the brake pads for wear.
    1. 1.1 Only when changing brake fluid at the same time:  Perform visual inspection with wheels removed

      > 440519 REMOVING AND INSTALLING WHEEL

      Information

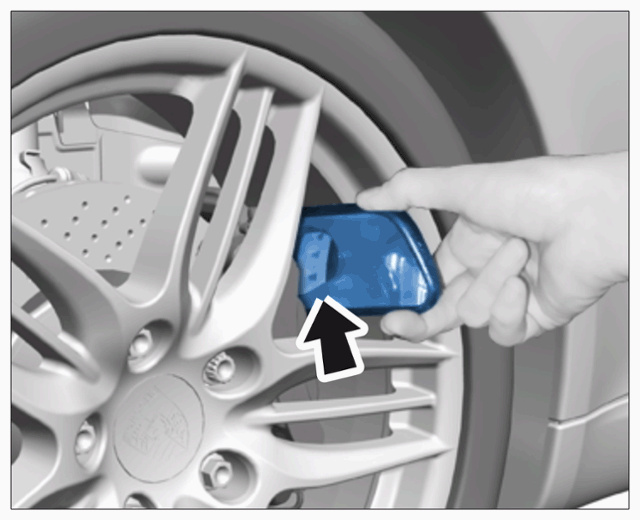

      A mirror can be used as an aid -arrow-  .

      G14948158Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Checking brake pads

    2. 1.2  Outside of brake pad: Perform visual inspection through the cut-outs in the rim.
    3. 1.3  Inside of brake pad: Perform visual inspection from below with the vehicle raised

      > 4X00IN LIFTING THE VEHICLE
