Subsequent Work
WARNING: This page is about a different variant/trim than selected.
- Install brake disc
- Fit wheel.
- If the central tension bolt was removed (in order to replace the wheel bearing, wheel hub or wheel bearing housing),
tighten lock nut on the wheel side -1-
Operate the brake while doing
this (2 mechanics required).
> Tightening torque 460 Nm (339.3 ftlb.)

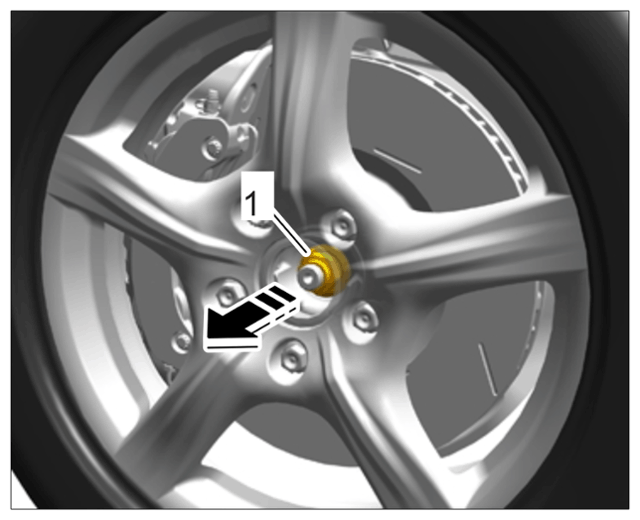

Axle nut as an example
- Fit hub cap.
- Fit cover over spring strut mount (move out of service position).
- Check wheel alignment values on the front axle and make adjustments if necessary.
