Preliminary Work
Information
- When raising the vehicle, take care to maintain access to the screws for the diagonal struts in the vicinity of the rear jacking points.
- Risk of squashing or crushing
- Risk of damage to the vehicle
- → Do not place any solid objects under the raised vehicle.
- → Ensure that the lifting platform is prevented from lowering.
- → Remove solid objects before lowering the vehicle.
- → Raise the vehicle only at the jacking points provided.
- → The outer jacking points should be used primarily.
- Raise the vehicle at the prescribed jacking points.
- Place protective covers on the vehicle.
- Read out the fault memory using the PIWIS Tester.
> The appropriate Service Information for Fault memory for on-board diagnosis.
- Evacuate the air conditioning system.
> WM, 870317 DRAINING AND FILLING REFRIGERANT R134A or WM, 870317 DRAINING AND FILLING REFRIGERANT R1234YF
- Boxster vehicles: Move convertible top into service position.
- Disconnect battery ground terminal.
- Remove engine compartment lid.
- Remove rear wall cover.
- Vehicles with particle filter:

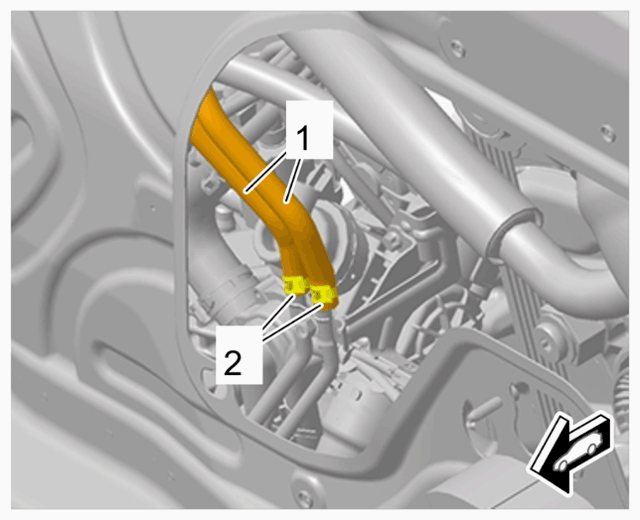

Disconnect differential pressure sensor hoses -1- .
- 9.1 Loosen spring band clamps -2- using > VAS 6890 - Spring Band Clamp Pliers and disconnect hoses -1- .
- 9.2 Close off line openings using suitable stoppers.
Differential pressure sensor hoses
- Disconnect B+ line.

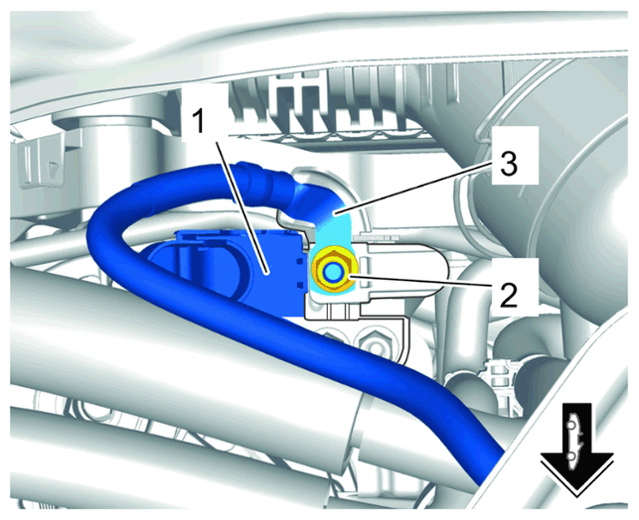

- 10.1 Open cover -1- on the box, screw off M8 hexagon nut -2- and set line aside.
- 10.2 Mask contact -3- !
B+ line connection
- Remove air cleaner housing -1-
.
> 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
- 11.1 After removing the air cleaner housing, remove the air guide -2- .

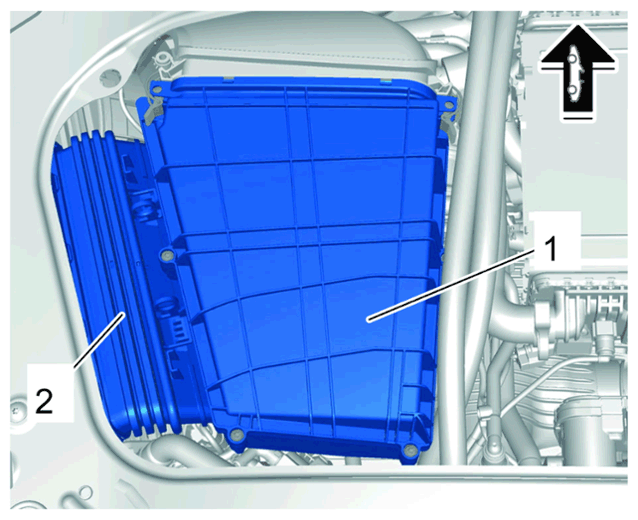

Air guide for air cleaner housing
- Air cleaner housing
- Raw air guide
- Pull off vent line -1-
on the coolant reservoir.
- 12.1 Press locking lugs -arrows- and pull off quick connector.

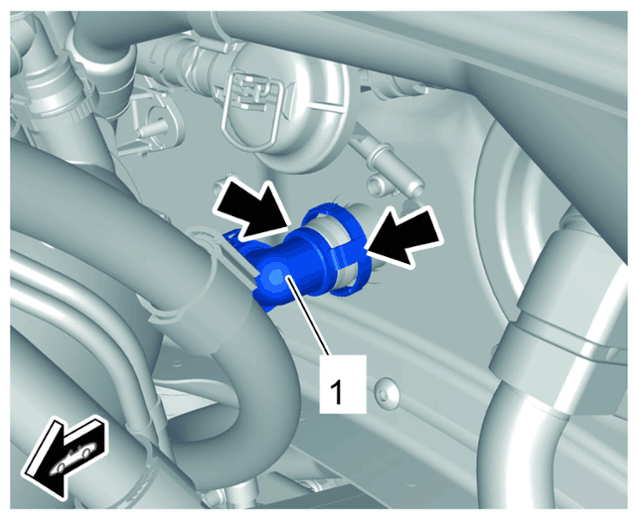

Vent line on coolant reservoir
- Pull off oil filler hose -1-
.
- 13.1 Press locking ring on the bars -arrows- and pull off quick connector.
Oil filling hose connection point
- Loosen and fold over luggage compartment trim.
> WM, 700619 - REMOVING AND INSTALLING REAR LUGGAGE COMPARTMENT TRIM PANEL .

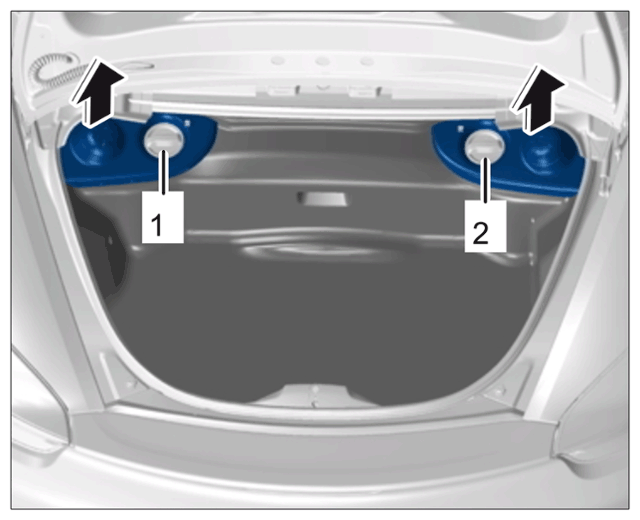

- 14.1 Unclip covers at the left -1- and right -2- and remove them -arrows- .
- 14.2 Fold luggage compartment trim towards the rear.
Rear luggage compartment cover (shown on the Boxster)
- Remove air guide -1-
for cooling the DME control unit.
- 15.1 Unscrew plastic nuts -2- and remove air guide and felt.

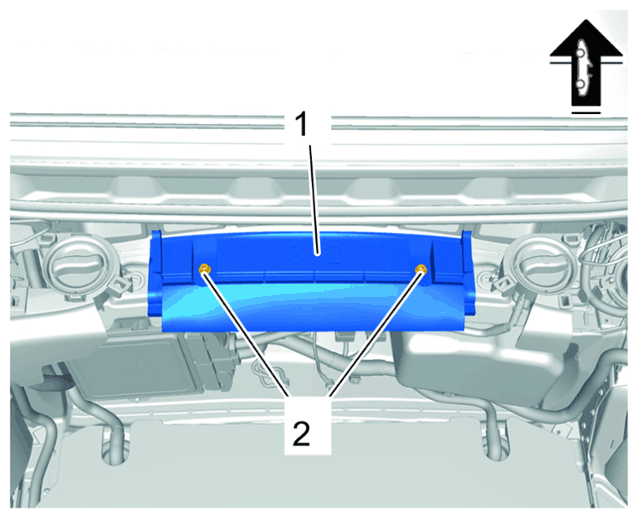

Air guide for DME control unit

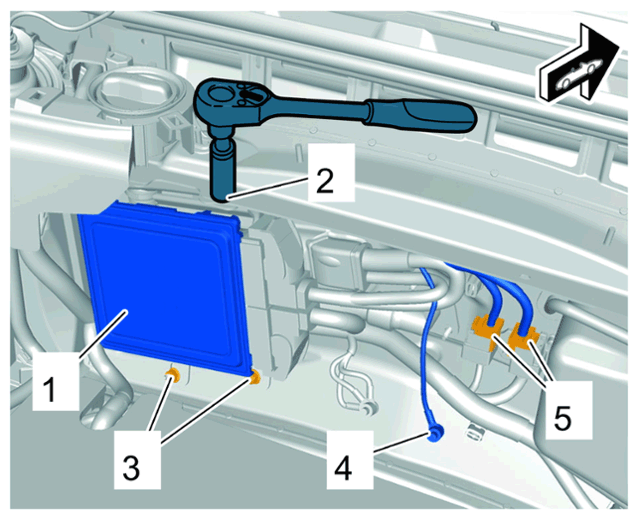

- Loosen cable plug for engine wire harness in luggage compartment and expose wiring harness.

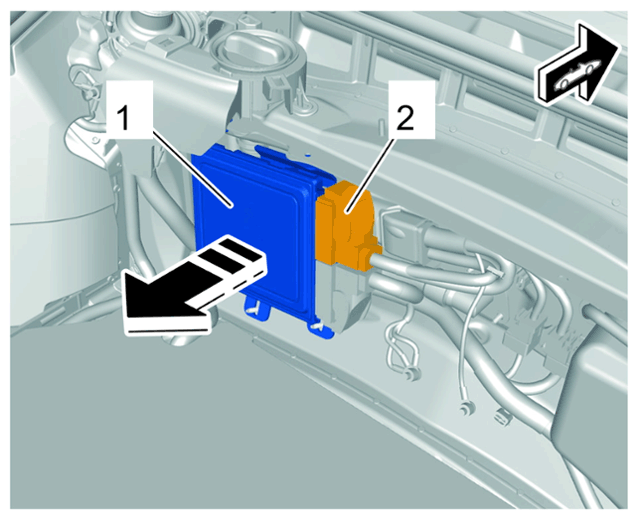

- 16.1 Loosen DME control unit -1- , unscrew upper screw -2- , but only loosen the lower screws -3- .
- 16.2 Disconnect ground cable, unscrew M8 hexagon nut -4- and disconnect two cable plugs -5- .
Loosening DME control unit in the luggage compartment
- Tilt control unit -1-
slightly to the rear, then release and disconnect main cable plug at the top -2-
.
Tilting DME control unit
- Guide wiring harness -1-
through the body and into the engine compartment.
- 18.1 Disconnect wiring harness at the tucker stud.
- 18.2 Detach rubber sleeve -2- using a plastic wedge and guide wiring harness through to the engine compartment.
- 18.3 Set wiring harness down on the intake-air distributor.
Bushing in body for engine wire harness
- Unclip shift cable -2-
and selector cable -1-
or parking lock cable (double clutch transmission) in the engine compartment.
Unclipping shift and selector cables or parking lock cable in engine compartment
- Loosen upper spring struts.

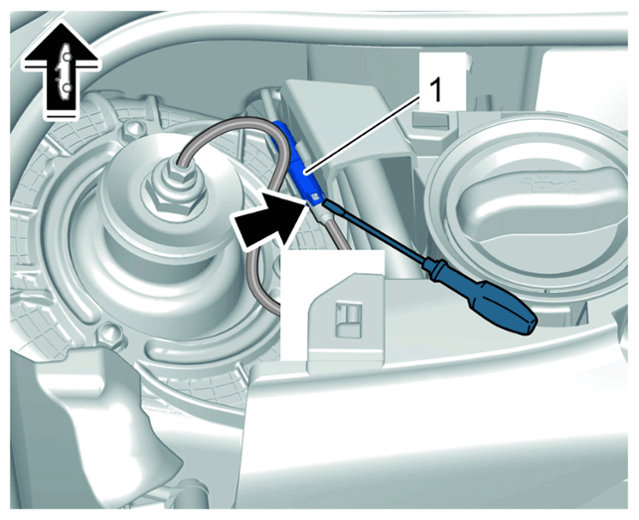

- 20.1 Unclip cable plug -1-
and disconnect it using a small screwdriver -arrow-
.

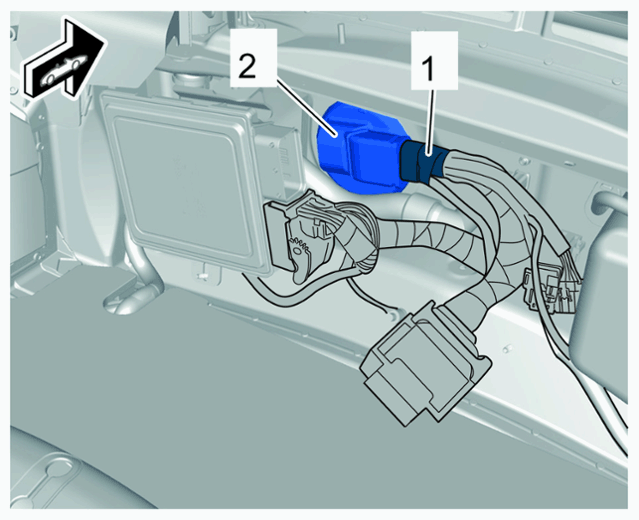

Opening plug connection
- 20.2 Screw off collar nuts -1- .

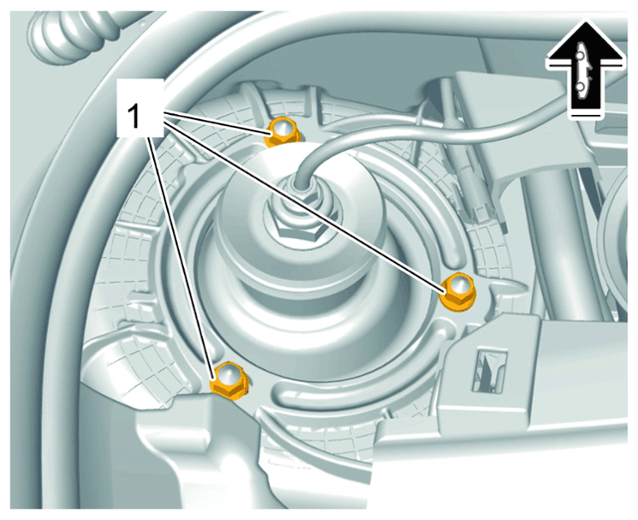

Upper spring strut mount
- 20.1 Unclip cable plug -1-
and disconnect it using a small screwdriver -arrow-
.
- Remove rear wheels.
> 440519 REMOVING AND INSTALLING WHEEL .
> P300 - Socket-wrench insert should be used.
- Loosen and secure brake callipers.
> 427119 REMOVING AND INSTALLING REAR SPRING STRUT .
Holder on wheel carrier
- 22.1 Disconnect cable plug -1- for electric parking brake by unclipping the cable -2- .
- 22.2 Disconnect cable plug for rpm sensor.
- 22.3 Unscrew M6 screw -4- on the line bracket.

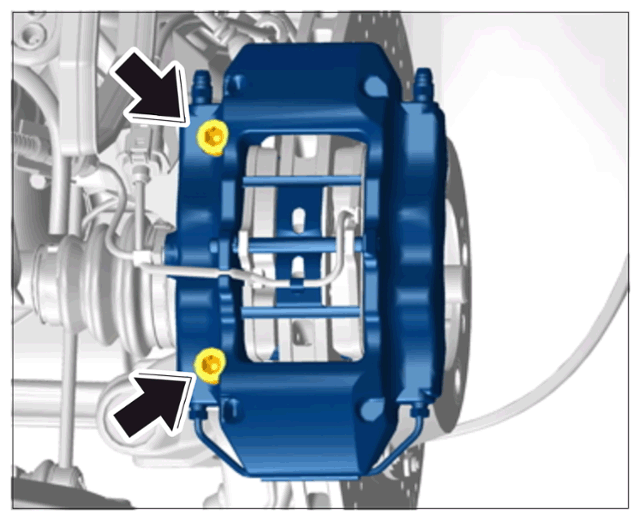

- 22.4 Unscrew screws on the brake calliper -arrows-
.

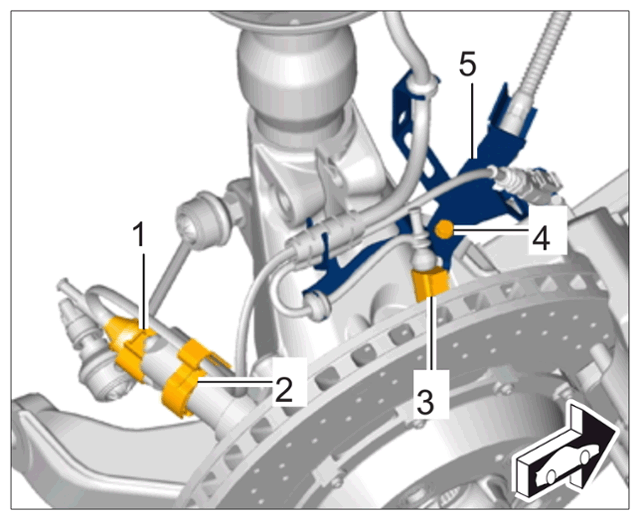

Fastening screws on brake calliper
- 22.5 Secure brake calliper -1- with welding wire or a tie-wrap -2- .

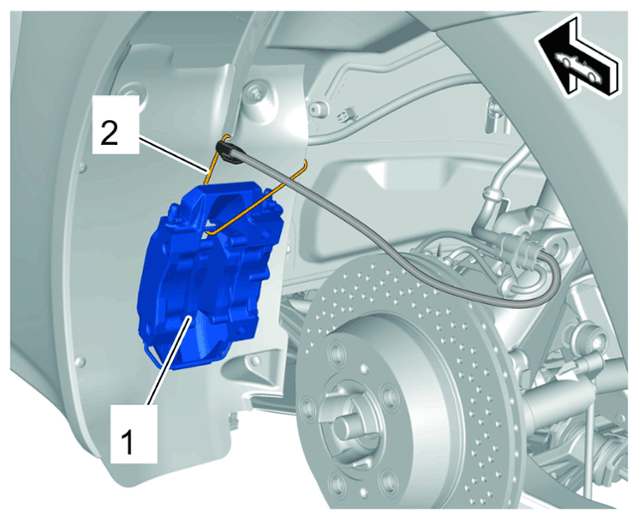

Securing brake calliper
- Remove the rear underbody panelling and unscrew the two screws on the underbody panelling (center).
> WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY
- Open air-conditioning lines on the underbody and close off using stoppers.

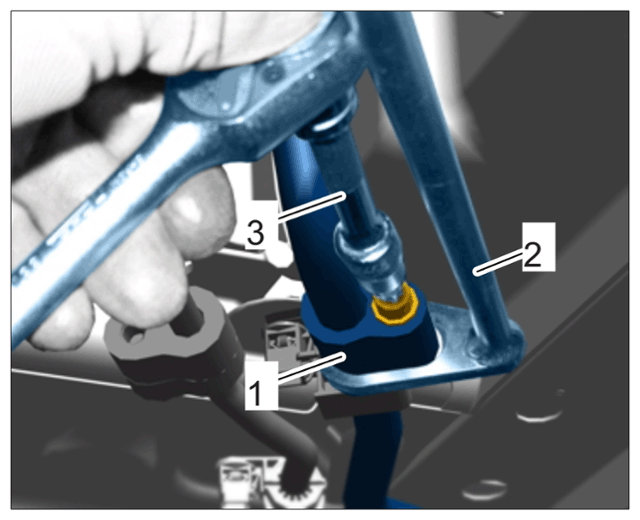

- 24.1 Unscrew the fastening screws by countering with the > 9822 - assembly tool-2- .
- 24.2 Pull off lines and close them off immediately before replacing the O-ring assembly.
- 24.3 Unclip lines from the holder on the body (bulkhead).

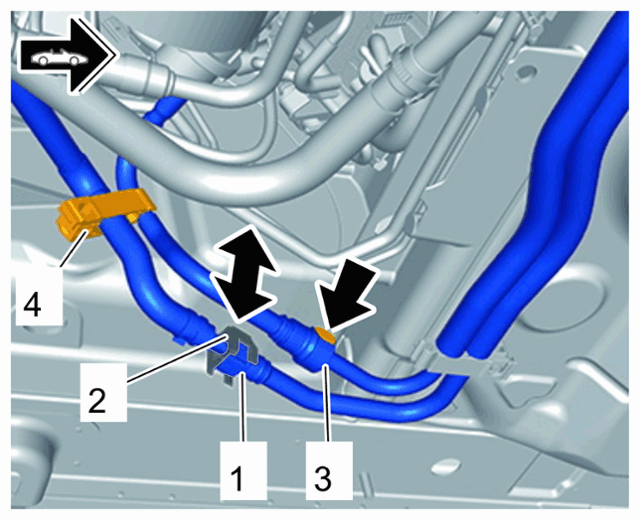

Underbody air-conditioning lines
- Air-conditioning line
- Assembly tool 9822
- Tool
WARNING: Caustic fluids- Danger of chemical burns
- → Wear personal protective gear.
- → Ensure that there is good ventilation.
- → Avoid contact with caustic fluid.
- → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.
- Drain coolant from the engine.
> 193817 DRAINING AND FILLING COOLANT .
Collect emerging coolant!

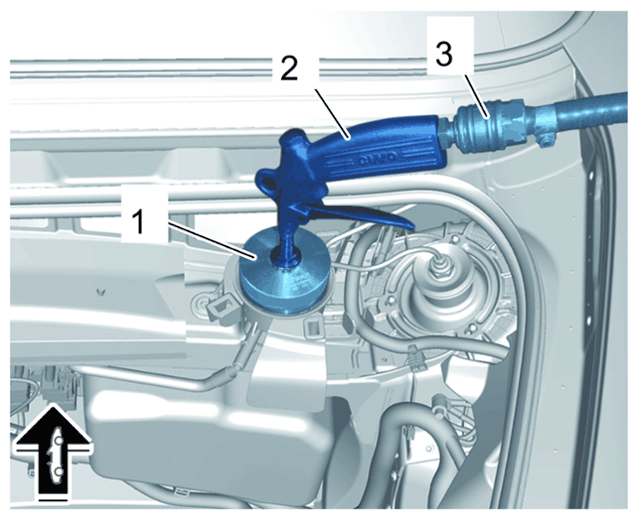

- 25.1 After draining coolant at the filler neck on the coolant reservoir using the > 9696/2 - filling adapter-1-
with compressed-air gun, "blow out" remaining coolant through the drain outlet.
Set compressed air to max. 1.5 bar!
Blowing out coolant through adapter on the cap
- Filling adapter 9696/2
- Compressed-air gun
- Compressed air hose
- 25.2 After draining coolant, screw in drain plug with a new sealing ring.
> Tightening torque 25 Nm (19 ftlb.) +/- 2 Nm (1.5 ftlb.)
- 25.1 After draining coolant at the filler neck on the coolant reservoir using the > 9696/2 - filling adapter-1-
with compressed-air gun, "blow out" remaining coolant through the drain outlet.
- Remove strut -1-
and open plug connection for the oxygen sensors -3 and 4-
.
- 26.1 Unscrew M10 screws -2- and remove strut.
- 26.2 Pull plug connections for oxygen sensors out of the holder and open them.
Strut, plug connections for oxygen sensors
- Strut
- M10 screws
- Oxygen sensor connector (blue cable) on cylinder bank 1-2
- Regulating sensor connector (black cable)
- Disconnect vacuum line -1-
for brake booster and open plug connection for oxygen sensor.
- 27.1 Press locking rings -2- and pull off line, then pull off vacuum hose -3- .
- 27.2 Pull plug connection -4- for oxygen sensor out of the holder and open it.
Brake booster line, plug connection for oxygen sensor
WARNING: Highly inflammable or explosive materials- Danger of fire or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapours.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.
- Open the rapid-action couplings for the fuel line -1-
and tank vent line -3-
.CAUTION: Residual pressure can cause fuel to spray out! Wear protective goggles.
- 28.1 Open the line clip.
- 28.2 Push lock -2- for fuel line up and release quick connector, then disconnect lines.
- 28.3 Release quick connector -3- on vent line -right arrow- and disconnect lines.

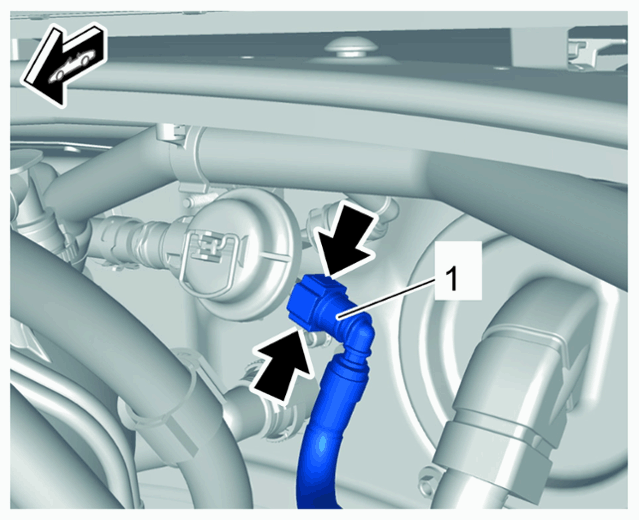

Connection point for fuel supply line and tank vent line

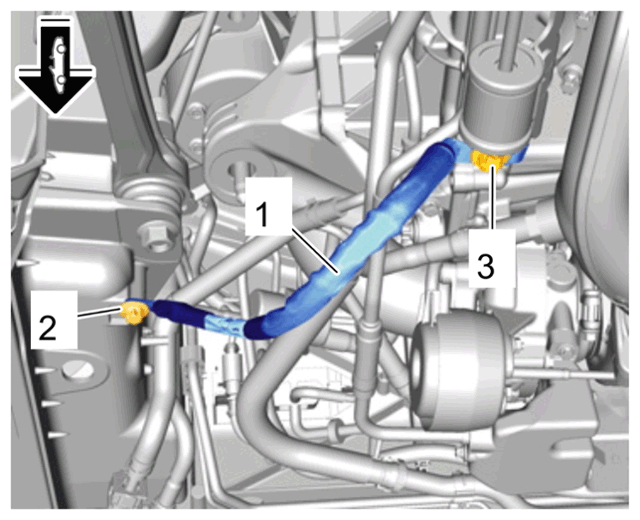

- Loosen ground strap -1-
for engine.
- 29.1 Unscrew M8 screw -2-
and move strap aside.
If you are replacing the engine, unscrew ground strap at the cylinder head -3- .
Engine ground strap
Information
- The vehicle must not be supported by its wheels after removing the diagonal braces and support plate.
- If the vehicle has to be supported by its wheels, the components must be re-installed beforehand.
- 29.1 Unscrew M8 screw -2-
and move strap aside.

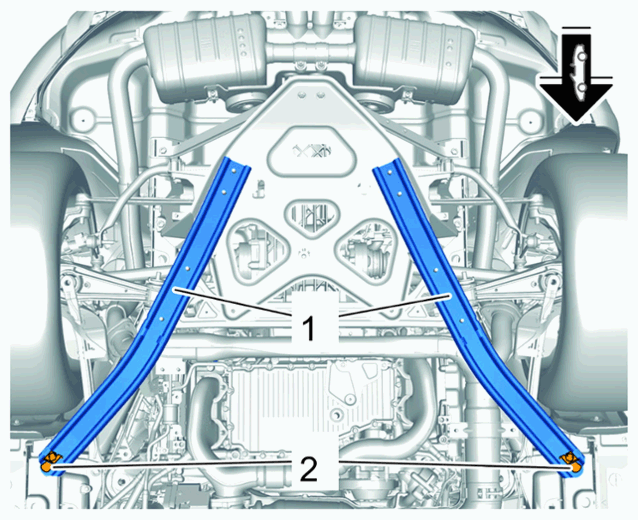

- Loosen diagonal braces -1-
on the body.
- 30.1 Unscrew M10 screws -2- .
Diagonal braces on body
- Loosen connecting strut -1-
.
- 31.1 Unscrew M10 screws -2- .

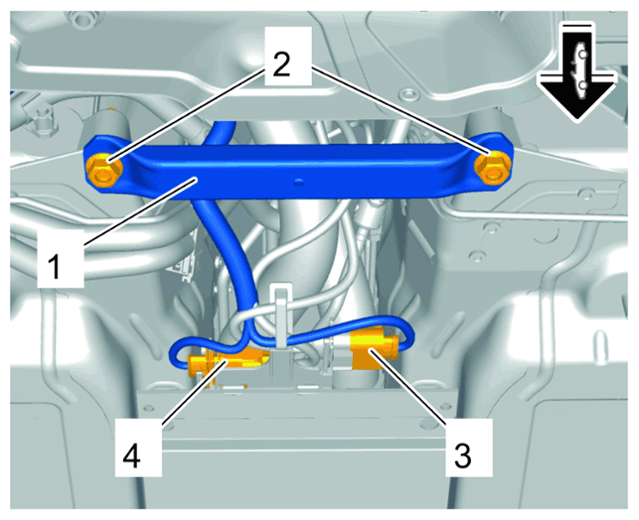

Connecting strut on body
- Loosen longitudinal arm -3-
at the body.
- 32.1 Unscrew M12 x 90 screw -2- .
- 32.2 Remove heat shield on the right-hand side (in direction of travel) with the screw.

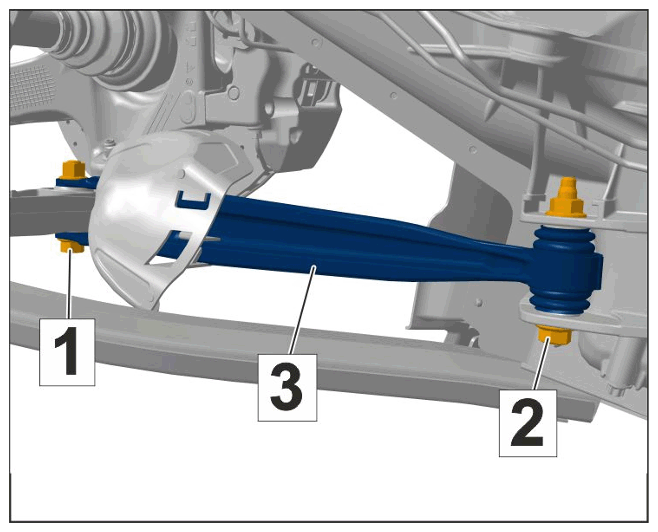

Diagonal arm mounting

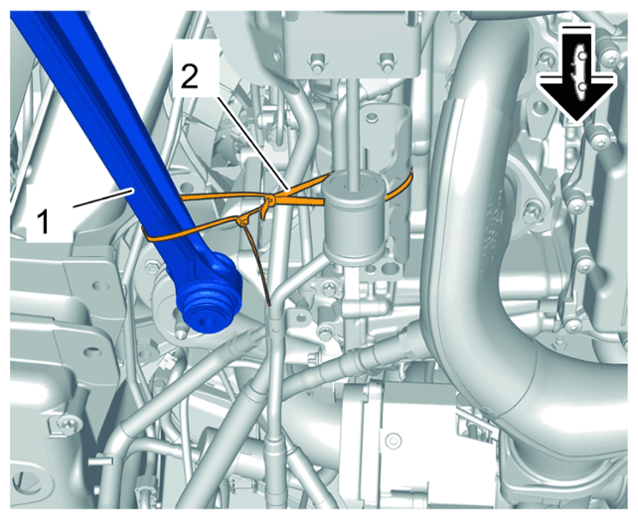

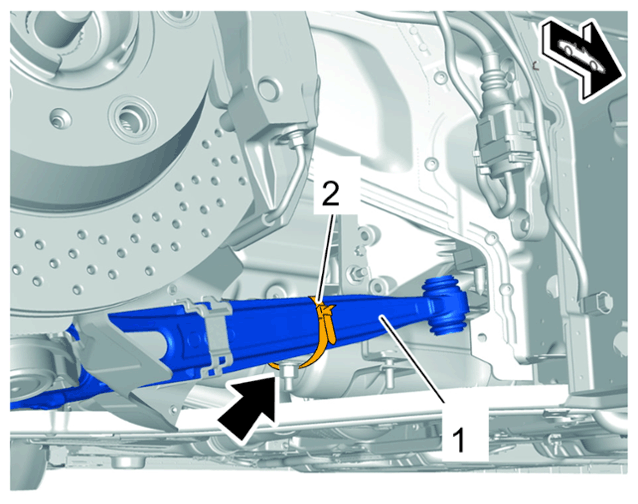

- Secure diagonal arm -1-
with a tie-wrap -2-
.

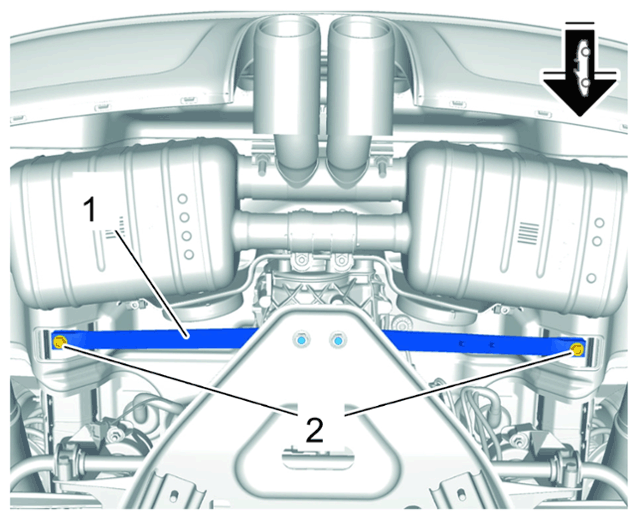

Securing longitudinal arm at the right with a tie-wrap
- Diagonal arm on right side
- Tie-wrap
- Vehicles with manual transmission:
- 34.1 Lever off shift cable -1- and selector cable -2- using > VAS 6933 - Disassembly tool .

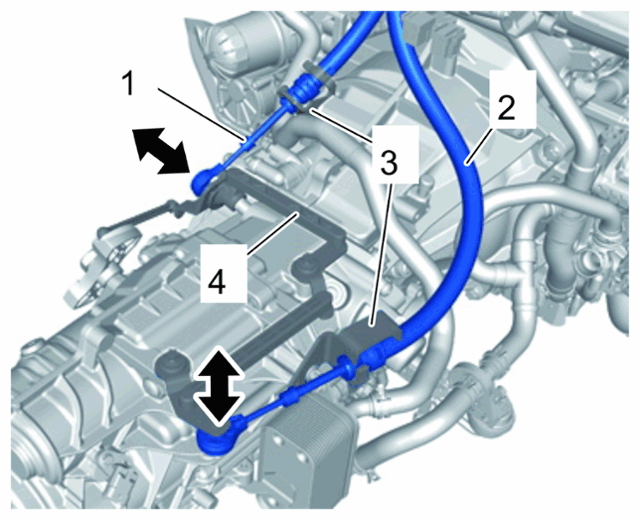

Shift and selector cables on transmission
- Selector cable
- Shift cable
- Fixing clips on support
- Connecting lever

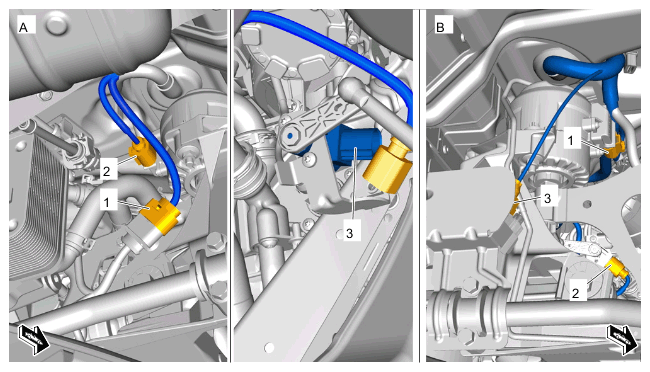

- Open electric plug connections at the bottom.
- Main cable plug for manual transmission
- Cable plug for adaptive transmission mounts on both sides (if fitted)
- Pull off cable plug for angle sensor (headlight levelling system) and cable clip on the holder
- Cable plug for control valve for adaptive engine mounts at the left (if fitted)
Electric plug connections, bottom
- A Right side:
- Main cable plug for manual transmission
- Cable plug for adaptive transmission mounts
- Connector for sensor for headlight levelling system, right
- B Left side:
- Cable plug for adaptive transmission mounts
- Connector for sensor for headlight levelling system, left
- Control valve for transmission mount vacuum
- Vehicles with Porsche Doppelkupplung (PDK)
: Disconnect cable plug -1-
from transmission.

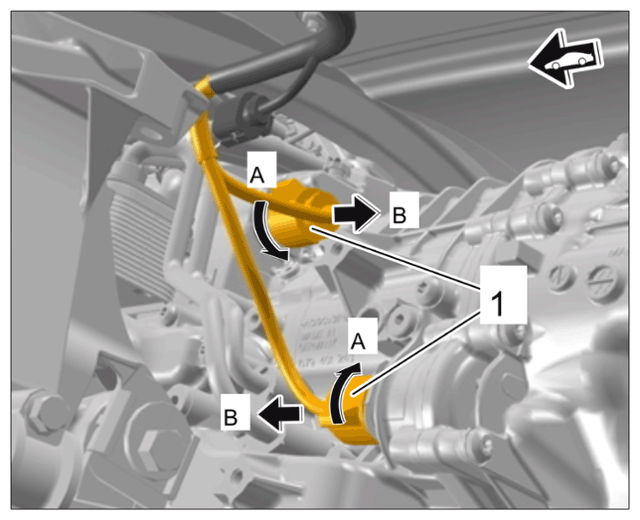

- 36.1 Open the bayonet locks anti-clockwise and pull off the connector.

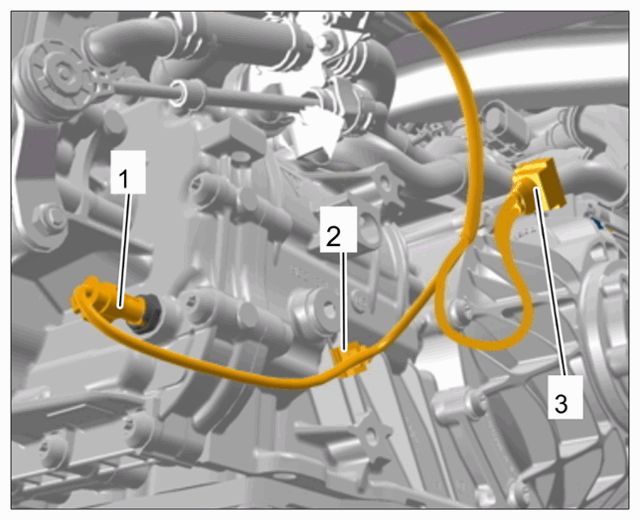

PDK electric plug connections on transmission
- 36.2 Disconnect cable plugs for temperature sensor -1- and control valves -2- and unclip line.
Cable plugs for temperature sensor and control valves
- 36.1 Open the bayonet locks anti-clockwise and pull off the connector.
- Loosen parking lock cable.

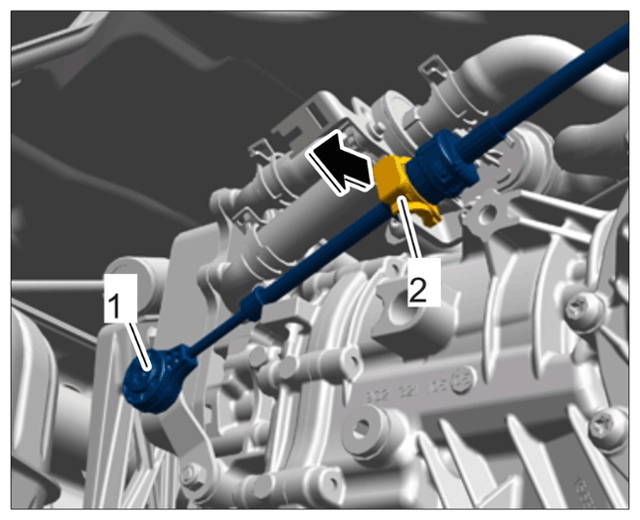

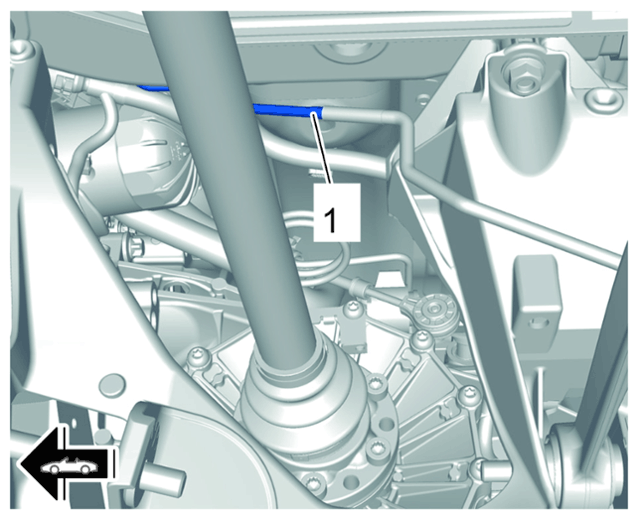

- 37.1 Lever off end piece -1- using > VAS 6933 - Disassembly tool .
- 37.2 Unclip parking lock cable from the support bracket -2- (-arrow- ).
Disconnecting parking lock cable from double-clutch transmission
All vehicles:
- Unclip and pull off vacuum line -1-
for transmission mount control valve.
Vacuum line for transmission mount

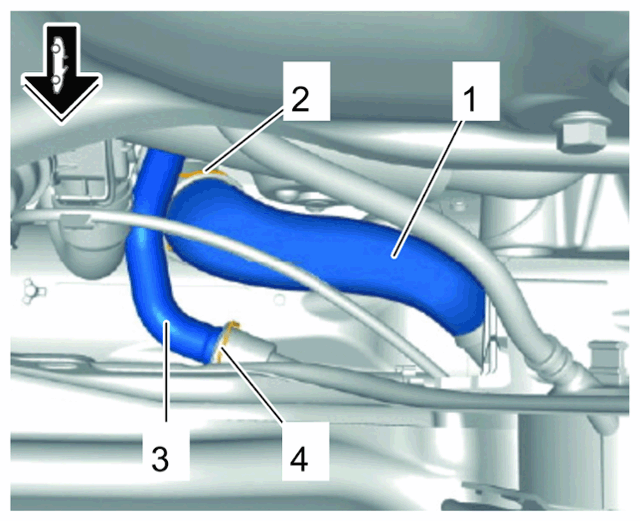

- Pull coolant hose -1-
off the coolant collection unit.
- 39.1 Pull off safety clip -2- , disconnect coolant hose and re-insert safety clip.

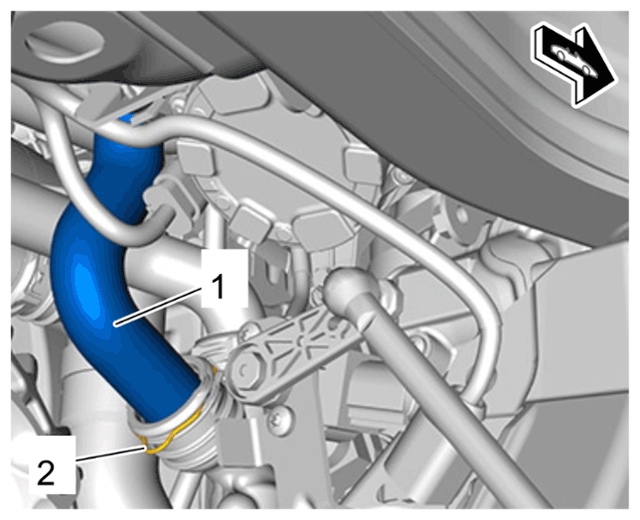

Coolant hose on coolant collection unit
- Open plug connection for coolant hoses on the engine.
- 40.1 Pull off spring clamp -2-
at the left and disconnect coolant hose -1-
on the left side (in direction of travel!).
Coolant hose on engine at the left (in direction of travel)

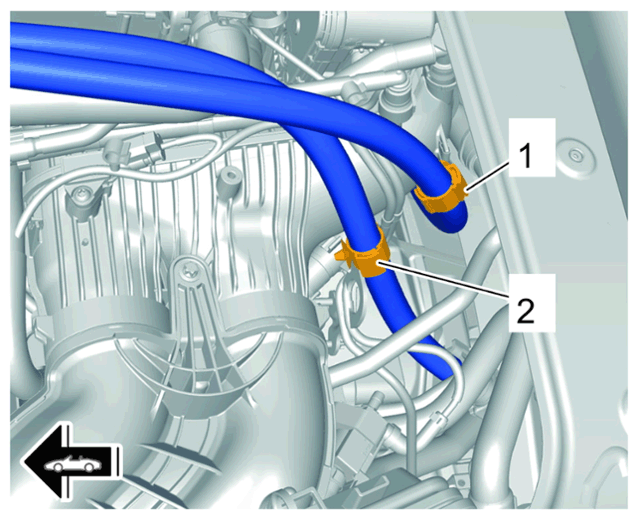

- 40.2 Open spring clamps (large -2- and small -4- ) and pull off coolant hoses -1 and 3- .
Coolant hoses at top of engine, right side
- 40.1 Pull off spring clamp -2-
at the left and disconnect coolant hose -1-
on the left side (in direction of travel!).
- Secure large coolant hoses -1-
with a tie-wrap -2-
.
- 41.1 Check O-rings -3- for damage and replace them if necessary.

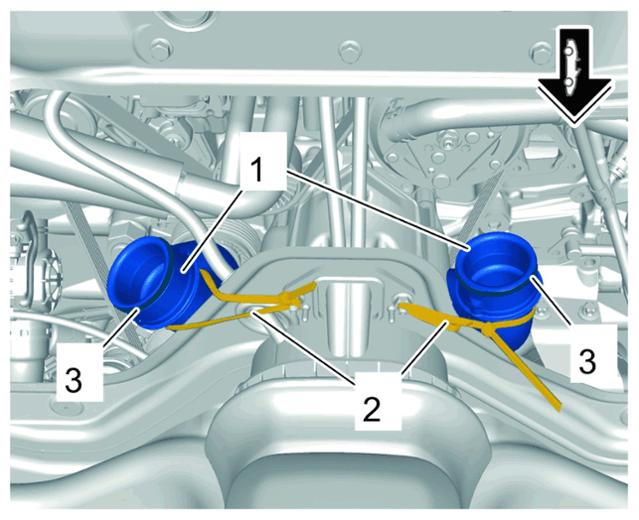

Securing coolant hoses with a tie-wrap

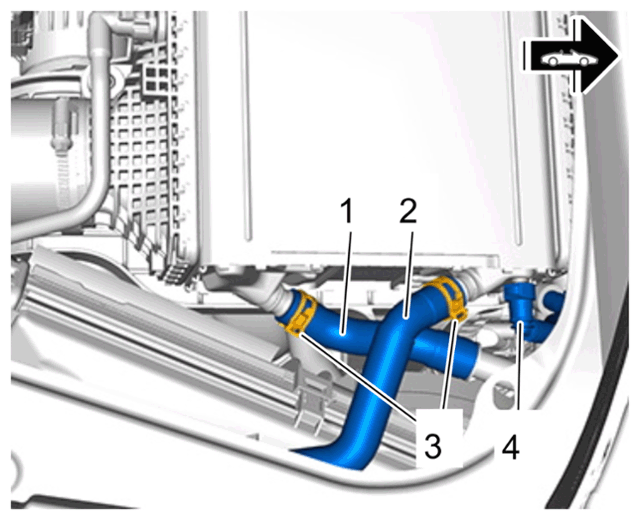

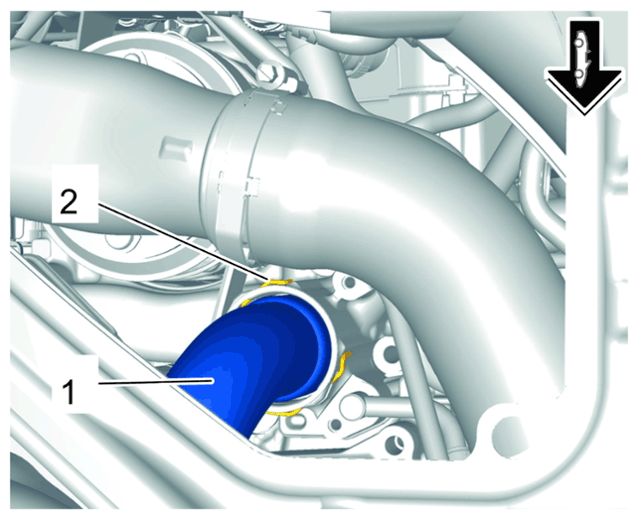

- Disconnect coolant hoses and vent line on the charge-air cooler.IMPORTANT: Emerging coolant!
Coolant hoses on charge-air cooler and vent line
- 42.1 Open spring band clamp at the right connection piece -3- and pull off coolant hose -2- .
- 42.2 Blow out remaining coolant in the charge-air cooler (set compressed air to max. 1 bar).
> 214319 REMOVING AND INSTALLING CHARGE-AIR COOLER .

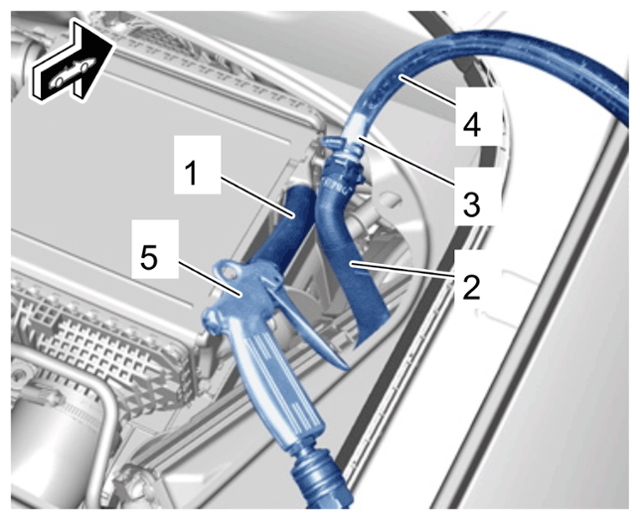

Blowing out charge-air cooler
- Hose piece (100 mm long), sold by the meter, internal diameter 16 mm
- Coolant hose to front connection piece
- Adapter piece, plastic
- Hose piece (approx. 1 meter), sold by the meter, internal diameter 16 mm; insert hose into collection container.
- Compressed-air gun
- 42.3 Pull off coolant hose -1- going to the rear (left connection piece) by opening the spring band clamp. Disconnect vent line -4- .

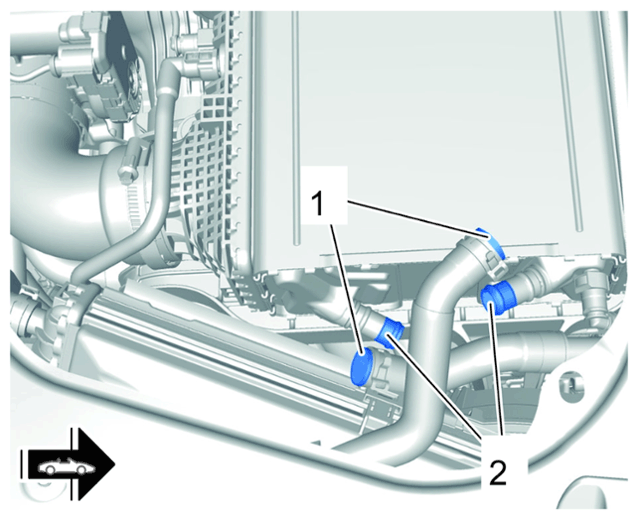

- Close off coolant hoses -1-
and connection piece -2-
.

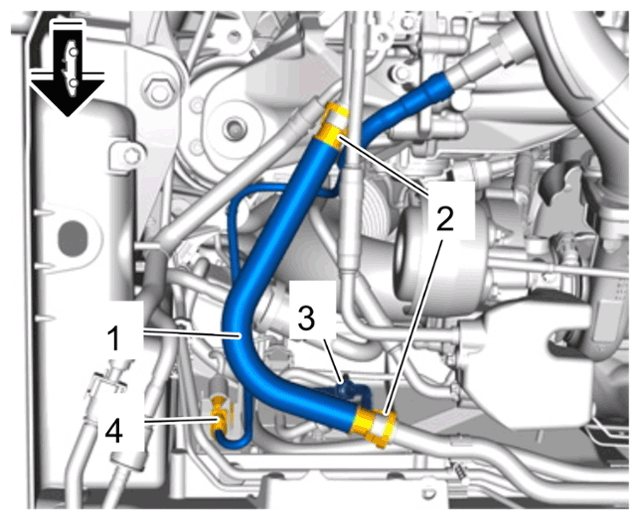

Coolant hoses on charge-air cooler
