Concluding Work
WARNING: This page is about a different variant/trim than selected.
- Only cylinders 1 and 2
: Secure the shield.

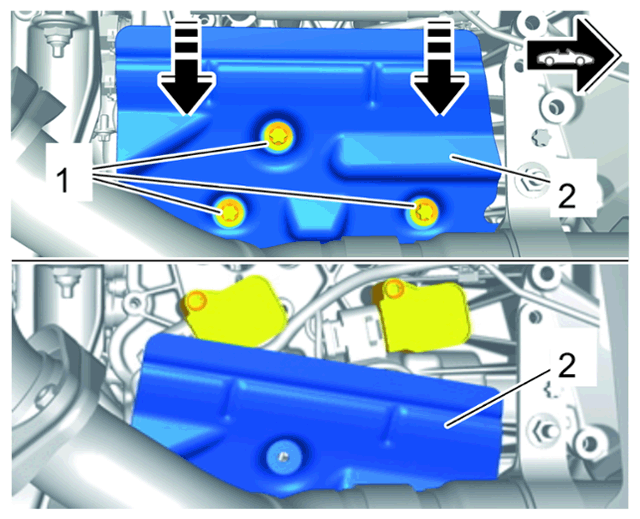

- 1.1 Position shield -2
- in installation position and screw in and tighten fastening screws -1
-.
> Tightening torque 10 Nm (7.4 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Fit rear wheels.
> 440519 REMOVING AND INSTALLING WHEEL
