Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Secure engine in installation position.
> 1001IN LOWERING THE ENGINE TO COMPLETE OTHER WORK

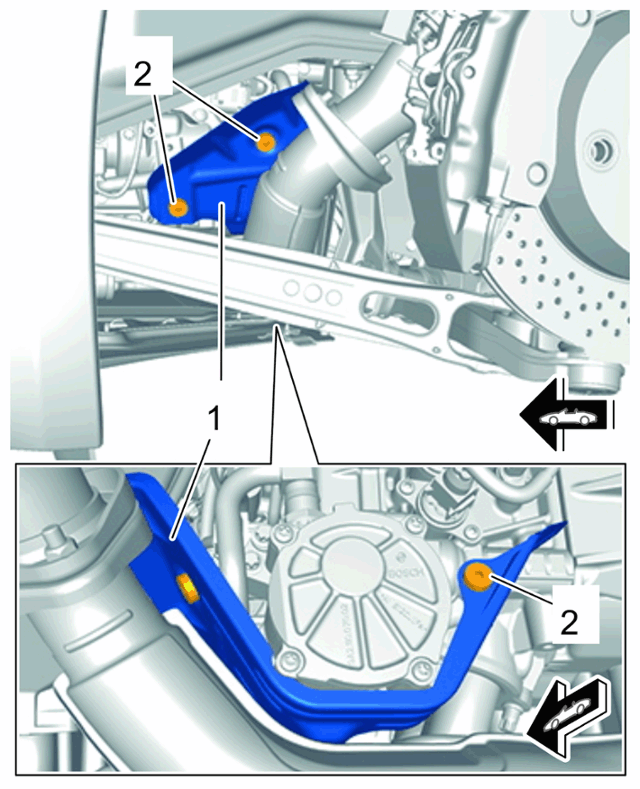

Secure heat shield -1 - on cylinder bank 3 to 4.
1. 2.1 Fit and tighten screws -2 -.
2. 2.2 Heat shield on cylinder bank 3 to 4: > Tightening torque 10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover for rear underbody.
> WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY
Fit left rear wheel.
> 440519 REMOVING AND INSTALLING WHEEL .
Install low-pressure sensor.
200419 REMOVING AND INSTALLING LOW-PRESSURE SENSOR
Install intake-air distributor section on cylinder bank 3 and 4.
Tighten screws on section on cylinder bank 1 and 2.

> 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR
Move charge-air cooler into installation position.
> 214309 SERVICE POSITION OF CHARGE-AIR COOLER
Install air cleaner housing.
> 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
Install engine compartment lid.
> WM, 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID
Perform First start function.
200107 BLEEDING FUEL SYSTEM ON HIGH-PRESSURE SIDE - FIRST START FUNCTION
