Removing Breather Pipe

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

WARNING: Hot fluid
  • Danger of scalding

    → Avoid contact with hot fluid.

    → Wear personal protective gear.

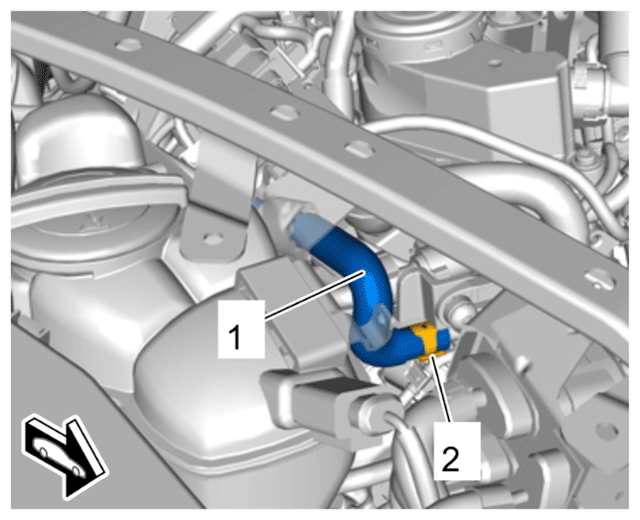

  1. Disconnect coolant vent line -1-  .
    1. 1.1 Loosen clamp -2-  and pull off vent line -1-  .
    G15824782Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant vent line

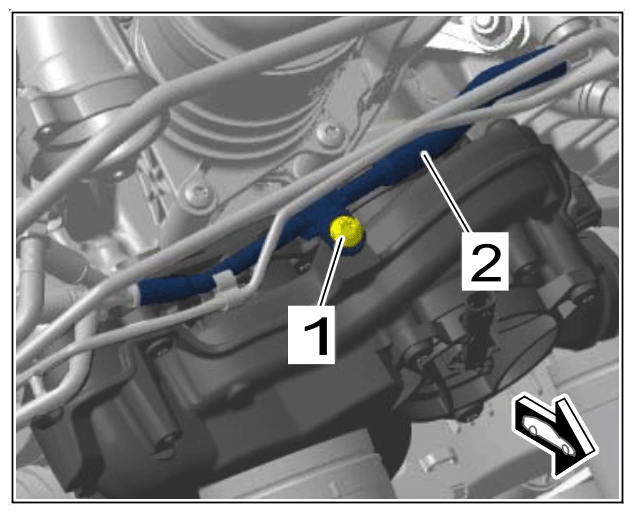

  2. Unscrew screw -1-  and press vacuum line holder -2-  aside.
    G15824783Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum line holder

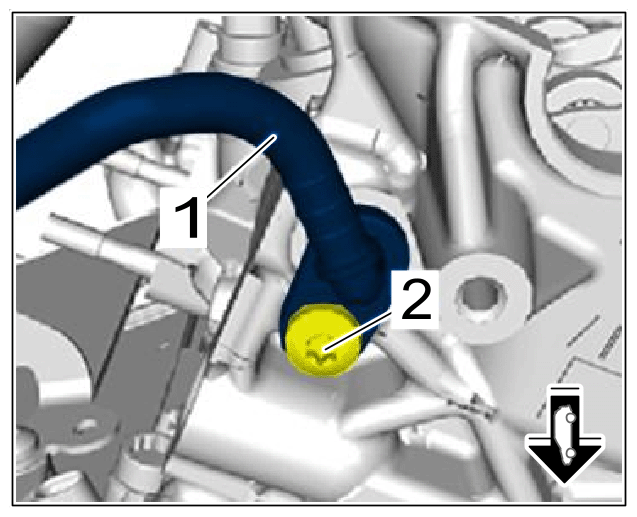

  3. Loosen and remove vent line -1-  on both cylinder heads.
G15824784Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vent line for cylinder head
