Removing Front Air Guide
WARNING: This page is about a different variant/trim than selected.

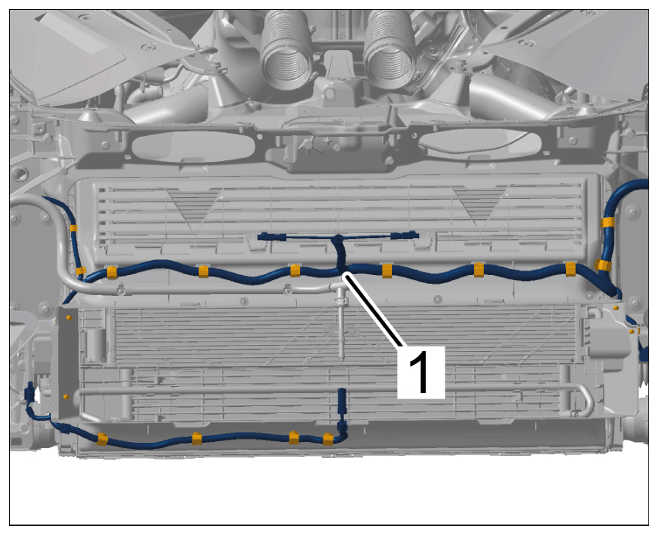

- Unclip electric wire harness -1-
from line brackets.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unclipping electric wire harness

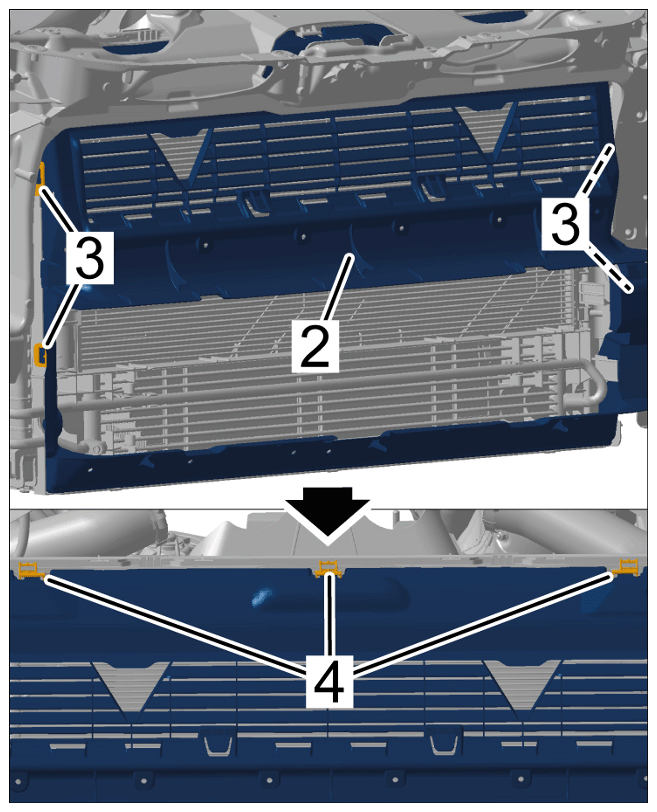

- Remove front air guide -2-
.
- 2.1 Unclip front air guide -2-
at the top and sides from retaining clips -3-
and -4-
.
- 2.2 Guide front air guide -2-
down out of the lock carrier.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing front air guide
