Removing Parts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the connecting shaft out of the old transmission.
  2. Remove heat shield -1-  .

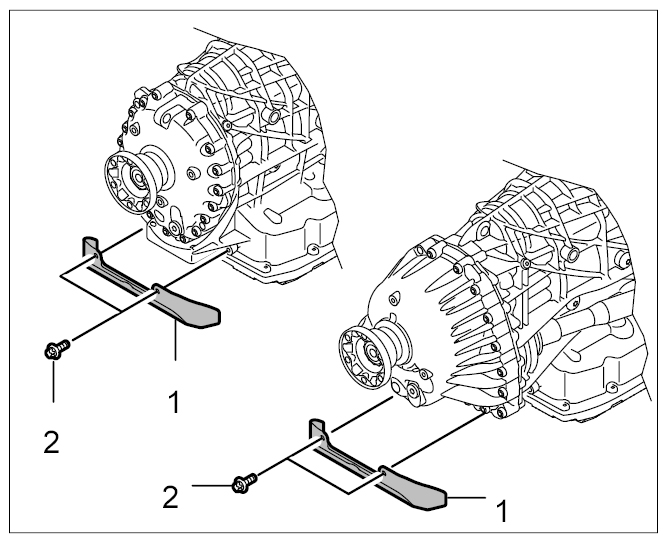

    Fig 1: Identifying Heat Shield On Transmission
    G09806921Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove transmission support. → Disassembling Transmission Support
