Disassembling Transmission Support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

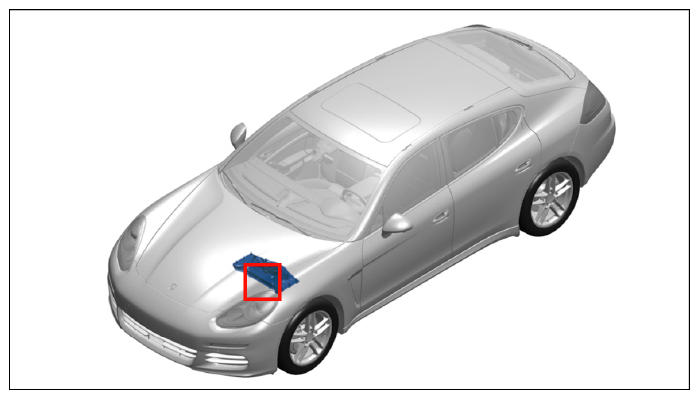

Fig 1: Overview Of Transmission Support
G09806945Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Support transmission with a transmission jack.
  2. Unscrew and remove fastening screws securing transmission support to body → Fastening screws on transmission mount  .

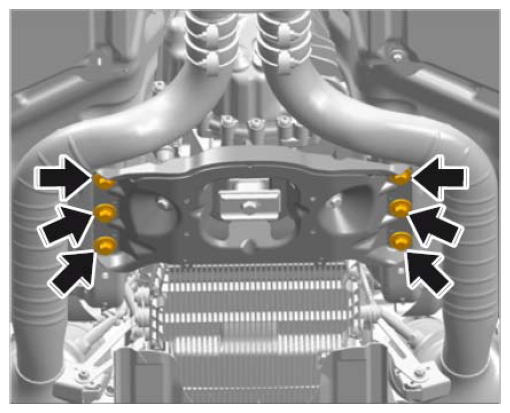

    Fig 2: Identifying Fastening Screws On Transmission Mount
    G09806946Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove transmission support -1-  . To do this, unscrew and remove fastening screws -2 and 5-  .

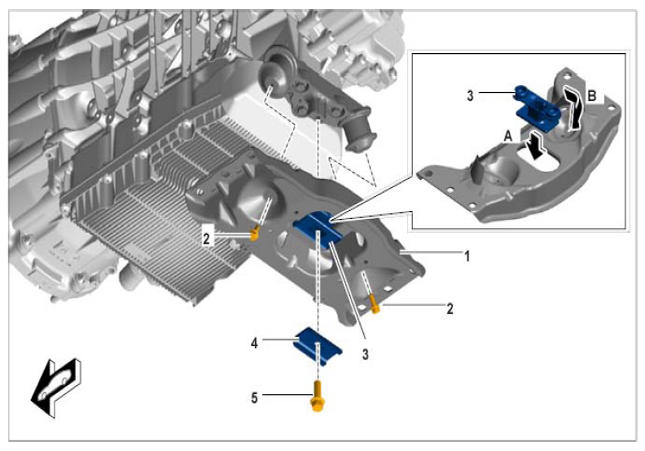

    Fig 3: Removing Transmission Support Assembly
    G09806947Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove transmission bracket. To do this, unscrew and remove fastening screws -1-  .

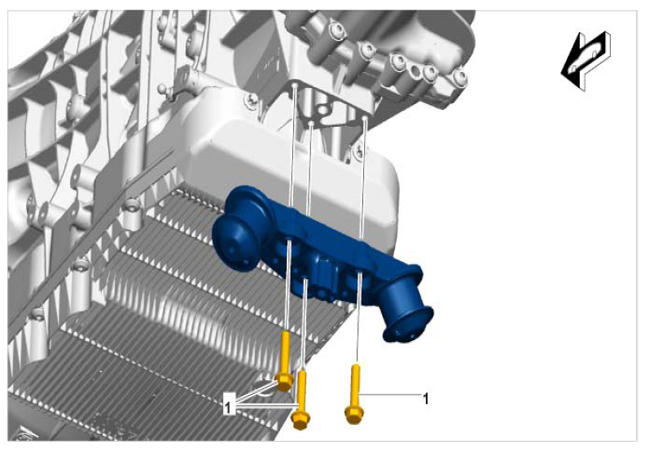

    Fig 4: Removing Transmission Bracket Assembly
    G09806948Courtesy of PORSCHE CARS NORTH AMERICA, INC.
