Fitting Parts

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace sealing ring on the connecting shaft.
  2. Fit heat shield -1-  . → Tightening torque: 23 Nm (17 ftlb.)

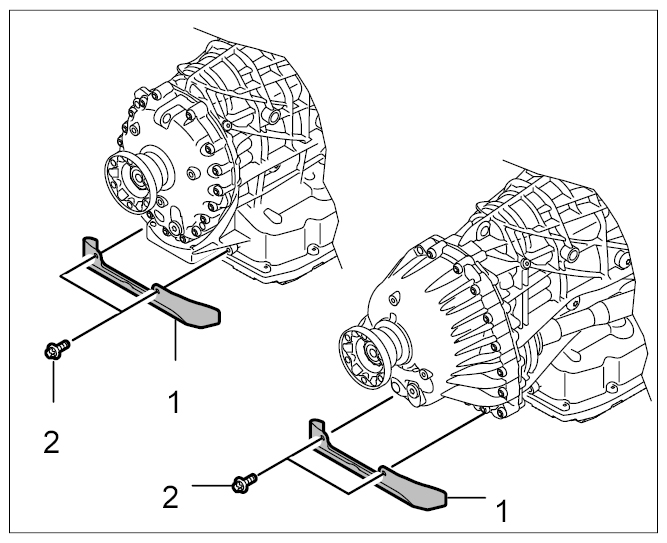

    Fig 1: Identifying Heat Shield On Transmission
    G09806922Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fit transmission support on the new transmission. → Assembling Transmission Support
