Assembling Transmission Support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

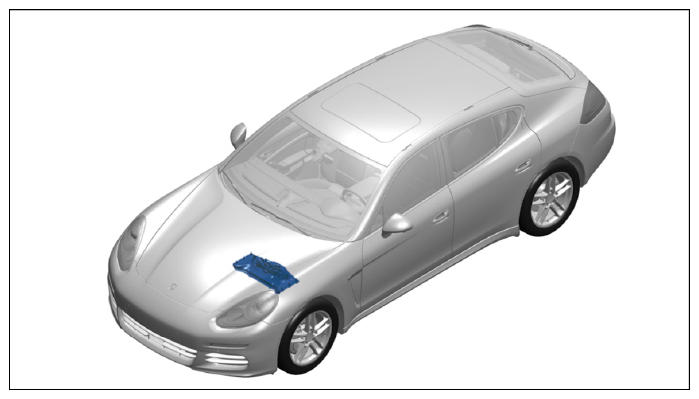

Fig 1: Overview Of Transmission Support

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit transmission bracket using fastening screws -1- . Tightening torque 65 Nm (48 ftlb.)

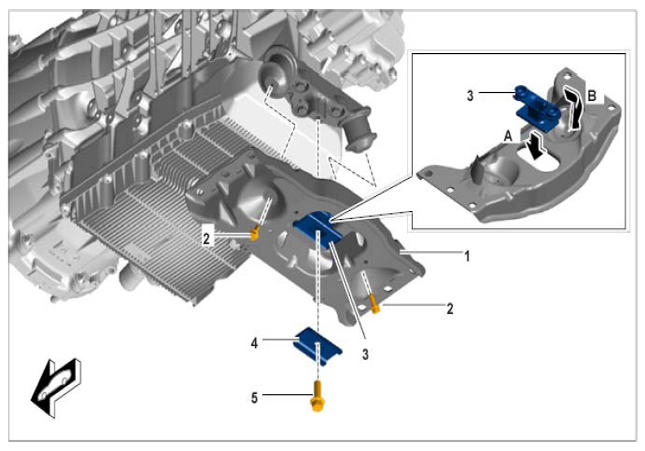

Fig 2: Identifying Transmission Bracket Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit transmission support -1- . When doing so, make sure that the rubber stop -3- is inserted correctly.
Transmission support to bracket -2- Tightening torque 23 Nm (17 ftlb.)

Transmission support to bracket -5- Tightening torque 120 Nm (89 ftlb.)

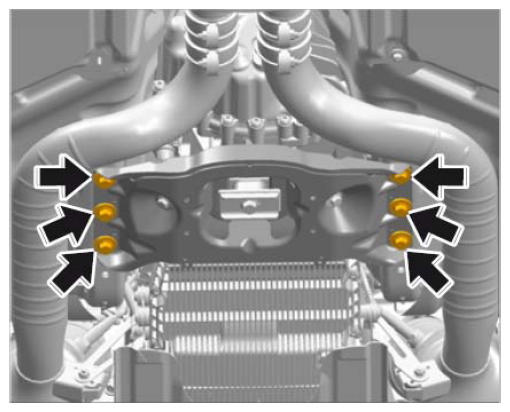

Fig 3: Fitting Transmission Support Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws for securing transmission support to body → Fastening screws on transmission mount . Tightening torque 65 Nm (48 ftlb.)

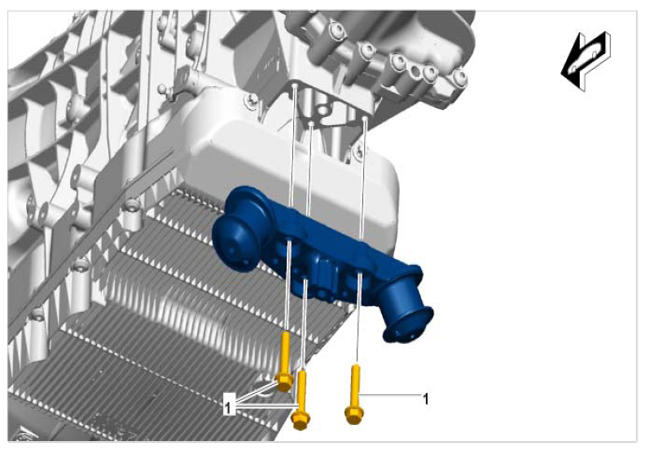

Fig 4: Locating Fastening Screws On Transmission Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
