Removing Sealing Ring For Transfer Gear

Press off the dust boot -1- using a mounting lever -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

use boot
Pierce a hole in the centre of the sealing ring using a mandrel.
Information
- Do not damage the drive shaft sealing face.
- Do not screw tapping screw in too far to avoid damaging the bearing behind it.

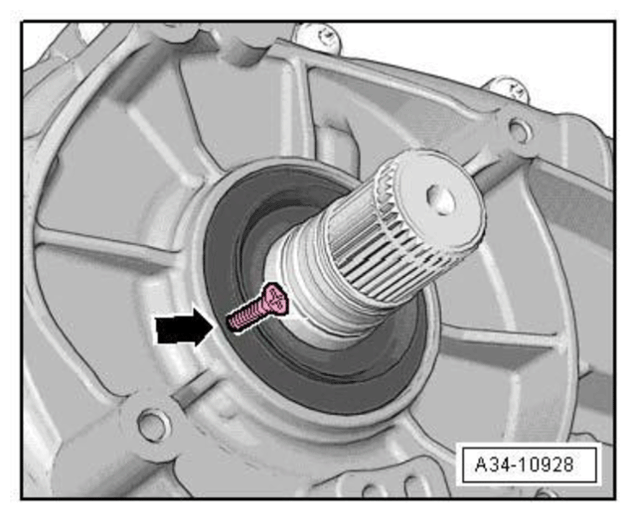

Screw in tapping screw -arrow- with a diameter of 4 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tapping screw in sealing ring

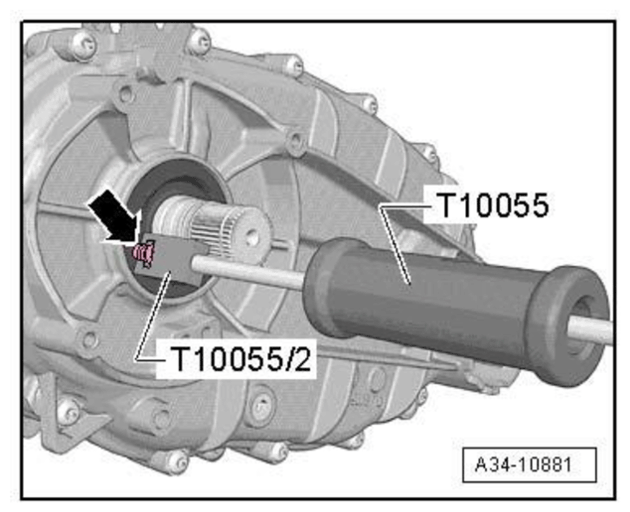

Pull out sealing ring using > T10055 - puller. > Removing sealing ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sealing ring
