Installing Sealing Ring For Transfer Gear

Lightly oil the cuter circumference of the new sealing ring.
Half-fill the space between tie selling and dust lips with sealing grease.

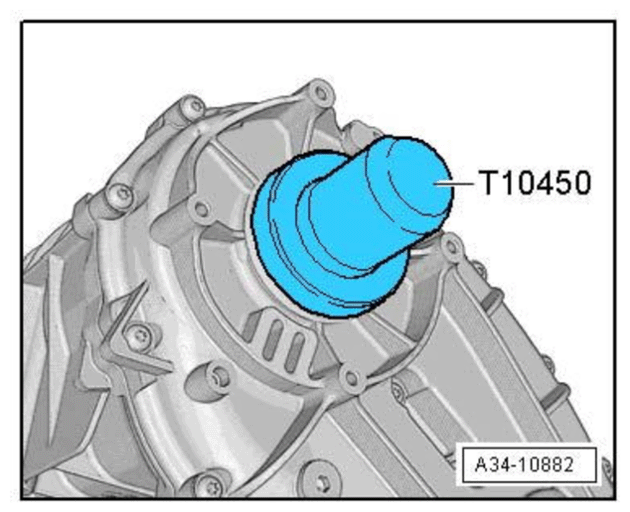

Tap sealing ring in as far as it will go using > T10450 - thrust piece. Do not tilt the sealing ring. > Installing sealing ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing sealing ring

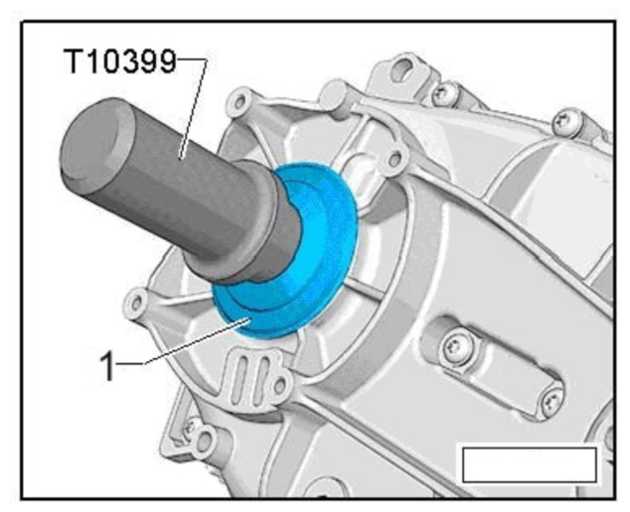

Tap in new dust boot until it locks onto the shaft using T10399 - assembly too .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting dust boot

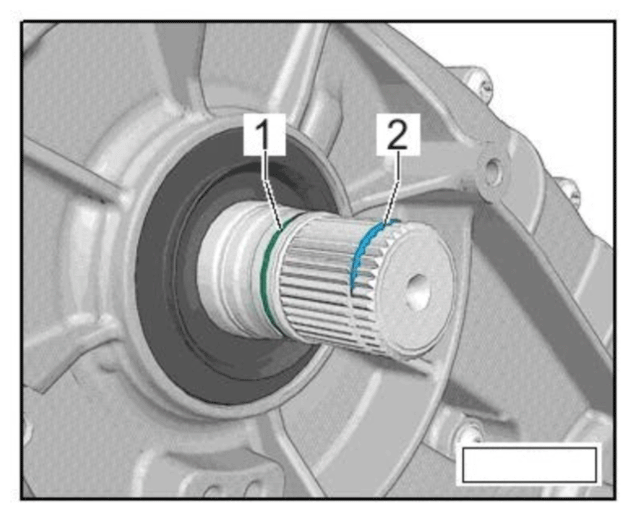

Replace O-ring -1- and circlip -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

O-ring and circlip
