Removing Sealing Ring For Transfer Gear

  1. Pierce a hole the centre of the sealing ring using a mandrel.
  2. Screw in tapping screw -arrow- with a diameter of 4 mm.

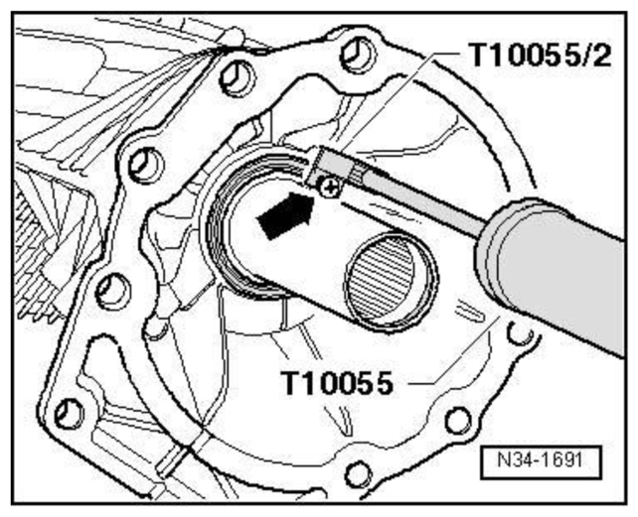

  3. Pull out sealing ring using > T10055 - puller > Sealing ring, inner drive
    G16315205Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sealing ring, inner drive
