Installing Sealing Ring For Transfer Gear

  1. Lightly oil the outer circumference of the new sealing ring.
  2. Half-fill the space between the sealing and dust lips with sealing grease.
  3. Tap the sealing ring in as far as it will go using > T10448 - pressure piece. Do not bend the sealing ring.

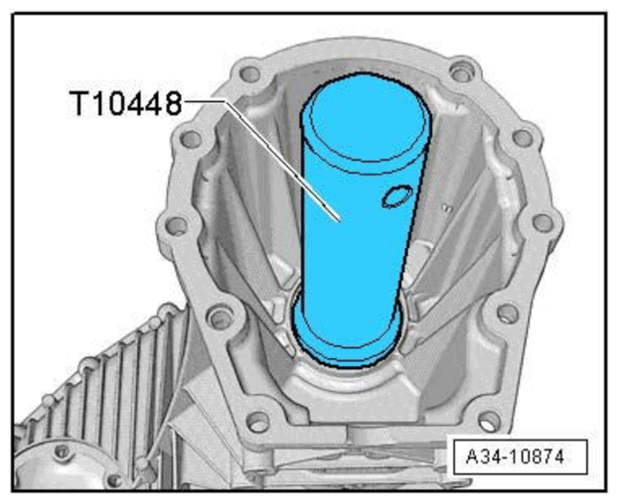

    G16315206Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Driving in sealing ring
