Removing Sealing Ring For Transfer Gear

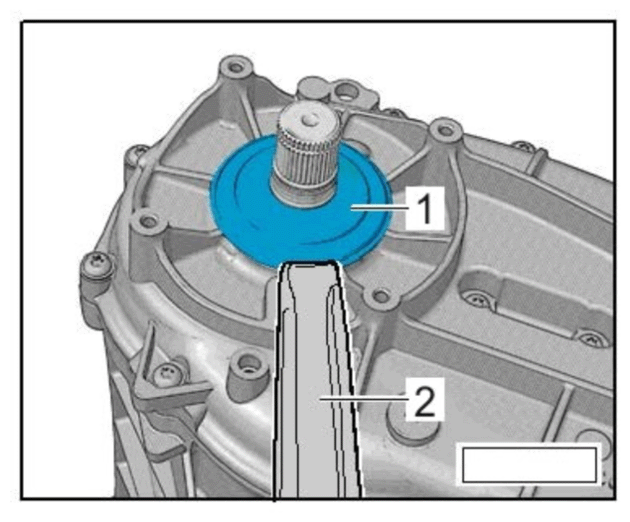

Lever of the dust boot -1- using a mounting lever -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing dust boot
Pierce a hole in the centre of the sealing ring using a mandrel.
Information
- Do not damage the drive shaft sealing face.
- Do not screw tapping screw in too far to avoid damaging the bearing behind it.

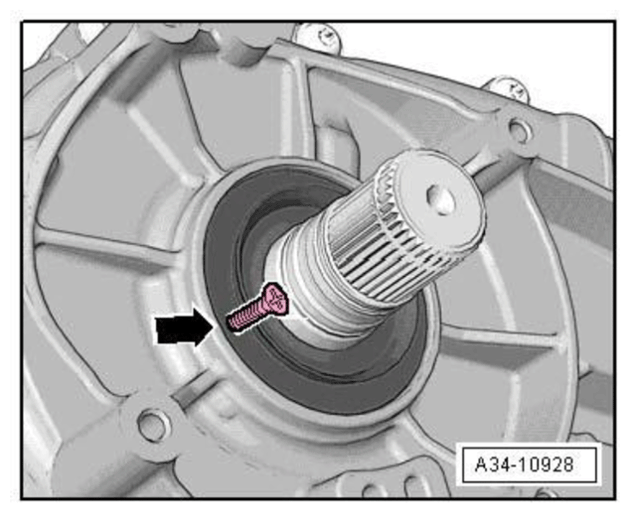

Screw in tapping screw with a diameter of 4 mm -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tapping screw in sealing ring

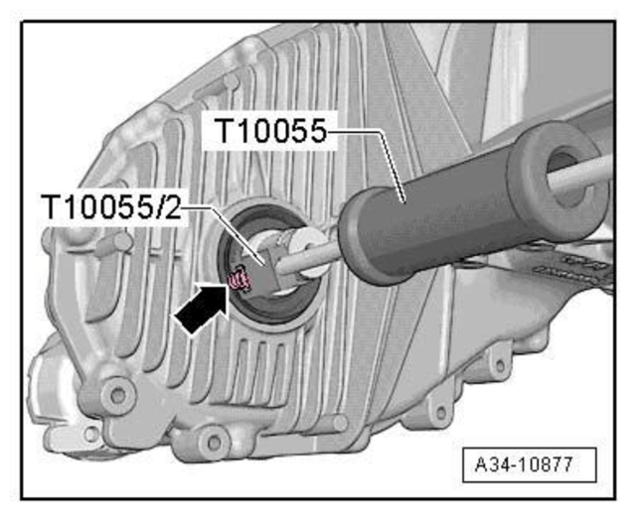

Pull out sealing ring using > T10055 - puller.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling out sealing ring
