Installing Sealing Ring For Transfer Gear

Lightly oil the outer circumference of the new shaft sealing ring.
Half-fill the space between tie selling and dust lips with sealing grease.
Tap the sealing ring in as far as it will go using > T10449 - pressure piece. Do not tilt the sealing ring. > Installing sealing ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

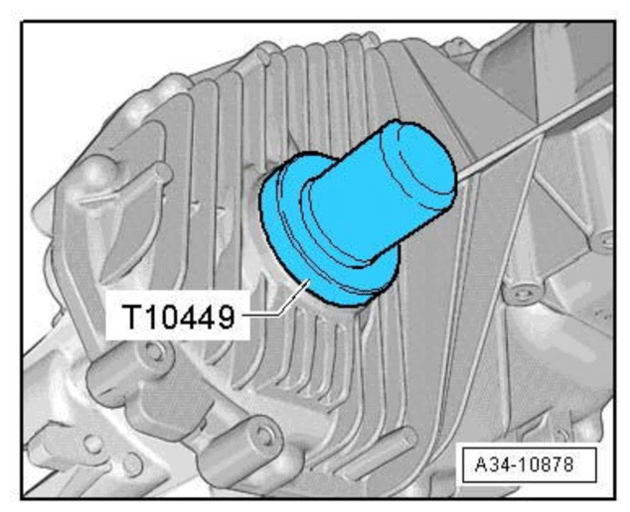

Installing sealing ring
Tap new dust boot -1- in using T10399 - assembly tool until it locks onto the shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

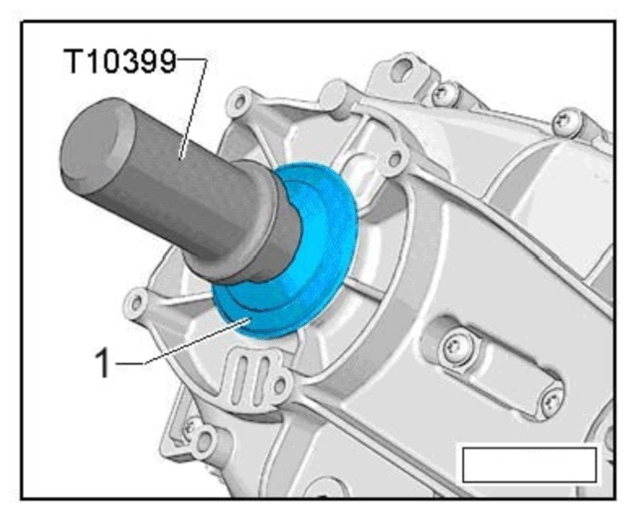

Fitting dust boot
Replace O-ring -1- and circlip -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

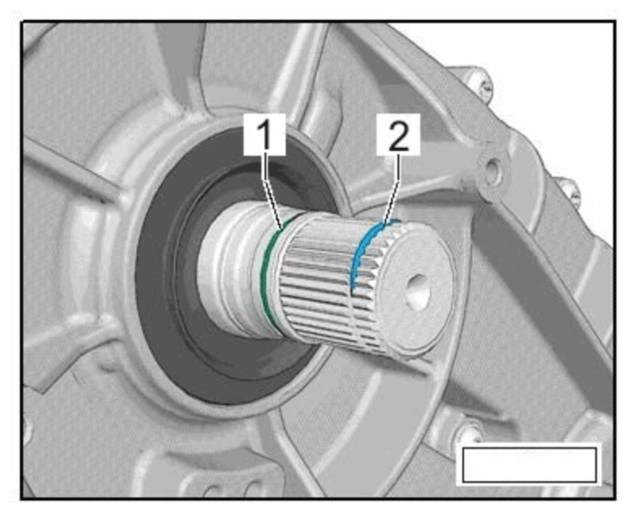

O-ring and circlip
