Changing Oil For Transfer Box

  1. Slide oil collecting container under the vehicle.
    WARNING: Hot fluid
    • Danger of scalding

      → Let the fluid cool down.

      → Wear personal protective gear.

  2. Unscrew oil drain plug -2-  and drain the oil.
    G16315197Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil inspection plug/oil filler screw

  3. Screw in new  oil drain plug -2-  . > Tightening torque 14 Nm (10.3 ftlb.)  -- Dang --
  4. Unscrew oil inspection pug -1-  .
    G16315198Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil inspection plug/oil filler screw

    Information

    Vehicle must he horizontal in order to fill the transfer box.

    Information

    Use only oil approved by Porsche.

  5. Fill oil up to the lower edge of the inspection opening -1- using > VAS 6563 - manual metering pump.
  6. Screw in new  oil inspection plug -1-  . > Tightening torque 14 Nm (10.3 ftlb.)  -- Dang --

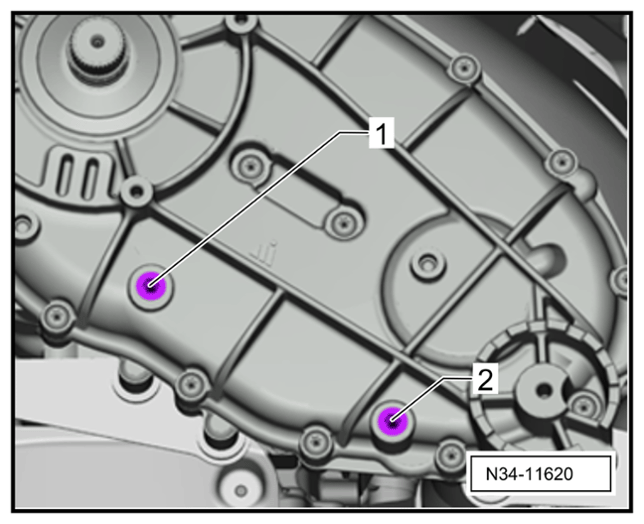

    G16315199Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil inspection plug/oil filler screw
