Oil Adjustment Specifications For Front-Axle Final Drive And Rear Axle Differential

Model	Transmission	I-no.	First fill	Change quantity	Fill measurement under lower edge of filler screw
Front-axle final drive
Cayenne S [D6V -E0A] Cayenne [D34]	FA final drive 165 SAF PD oil		0.6 litres	0.5 litres	> Fill quantity 7 mm +/- 2 mm -- Dang --
Cayenre GTS [D6V +E0W Cayenne Turbo [D53] Cayenne Diesel [D1V/D50 ' D43] Cayenne S Diesel [DD3] Cayenne Hybrid [D19] Cayenne China [D11]	Final drive 175 SAF PD oil		0.6 litres	0.5 litres	> Fill quantity 5 mm +/- 2 mm -- Dang --
Rear axle differential
Cayenne Diesel [D1V/D50/D43] Cayenne Hybrid [D19] Cayenne China [D11]	Rear axle diff. 195 open SAF PD oil	1Y0	0.9 litres	0.3 litres	> Fill quantity 3 mm +/- 2 mm -- Dang --
Cayenne S [D6V -E0A] Cayenne GTS [D6V +E0W] Cayenne Turbo [D53]	Rear axle diff. 210/220 open SAF PD oil	1Y0	1.1 litres	1.0 litres	> Fill quantity 6 mm +/- 2 mm -- Dang --
Cayenne [D34] Cayenne S [D6V -E0A] Cayenne GTS [D6V +E0W] Cayenne Turbo [D53] Cayenne S Diesel [DD3]	EM rear axle diff. 210/220 SAF carbon mod. oil	1Y1	1.4 litres	1.3 litres	Lower edge of filler screw

EM: Electromechanical rear-diff. lock/1Y0 without rear-diff. lock/1Y1 with rear-diff. lock

Information

Place oil collecting container underneath the vehicle.
WARNING:
Hot fluid
- Danger of scalding
  → Let the fluid cool down.

  → Wear personal protective gear.
Unscrew oil drain plug -B- and drain the oil.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil inspection and drain plug
Screw in oil drain plug -B- with a new sealing ring. > Tightening torque 35 (26 ftlb.) Nm -- Dang --
Unscrew oil inspection plug using > VAS 6928 - socket set, 39-piece.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

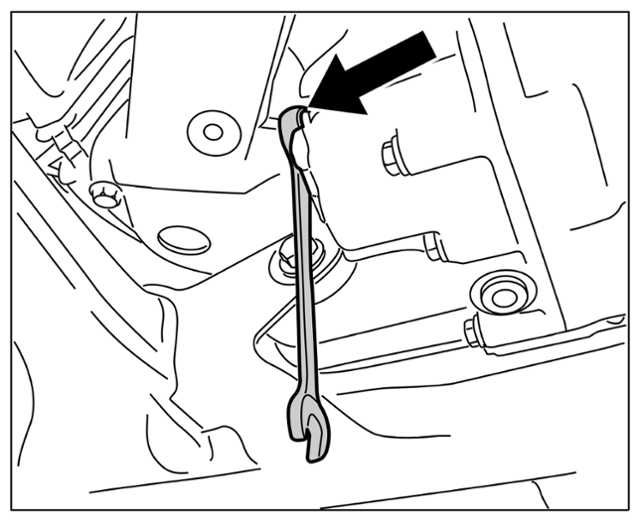

Tool for oil inspection plug

Use > VAS 6563 - transmission fluid filler pump set to fill oil into inspection plug opening -A-.

5.1 The oil fill quantity is specified in the table Oil adjustment specifications for front-axle final drive and rear axle differential .

5.2 The oil level in the final drive can be measured using an angled piece of wire, for example.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil inspection and drain plug

Screw in oil inspection plugs and a new sealing ring -A- using > VAS 6928 - socket set, 39-piece > VAS 6947 -ring spanner insert, a/f 13 > VAS 6948 - adapter > VAS 6951 - universal joint. > Tightening torque 35 (26 ftlb.) Nm -- Dang --

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil inspection and drain plug
