Checking Oil For Transfer Box

Information

• The vehicle must stand horizontally.

Information

The oil level can only be checked after the vehicle has been idle for 45 minutes.

The engine must not be started during this time.

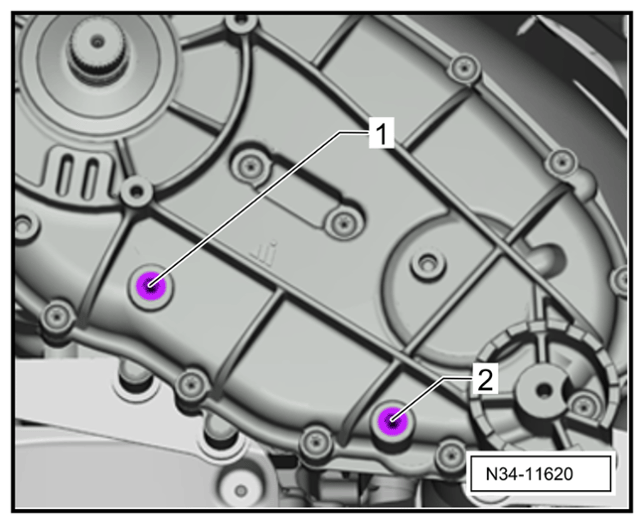

1. Unscrew oil inspection plug -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil inspection plug/oil filler screw

2. The oil level is correct if the oil reaches the lower edge of the inspection window.

   Information

   Use only oil approved by Porsche.

3. If this is not the case, fill with oil.

   > 399035 Checking and topping up oil for transfer box - section on "TOPPING UP "

4. Screw in new  oil inspection plug -1-  . > Tightening torque 14 Nm (10.3 ftlb.)  -- Dang --
