Oil Adjustment Specifications For Front-Axle Final Drive And Rear Axle Differential
| Model | Transmission | I-no. | First fill | Change quantity | Fill measurement under lower edge of filler screw |
|---|---|---|---|---|---|
| Front-axle final drive | |||||
| Cayenne S [D6V -E0A] Cayenne [D34] | FA final drive 165 SAF PD oil |
0.6 litres | 0.5 litres | > Fill quantity 7 mm +/- 2 mm -- Dang -- | |
| Cayenre GTS [D6V +E0W Cayenne Turbo [D53] Cayenne Diesel [D1V/D50 ' D43] Cayenne S Diesel [DD3] Cayenne Hybrid [D19] Cayenne China [D11] | Final dive 175 SAF PD oil |
0.6 litres | 0.5 litres | > Fill quantity 5 mm +/- 2 mm -- Dang -- | |
| Rear axle differential | |||||
| Cayenne Diesel [D1V/D50/D43] Cayenne Hybrid [D19] Cayenne China [D11] | Rear axle diff. 195 open SAF PD oil |
1Y0 | 0.9 litres | 0.3 litres | > Fill quantity 3 mm +/- 2 mm -- Dang -- |
| Cayenne S [D6V -E0A] Cayenne GTS [D6V +E0W] Cayenne Turbo [D53] | Rear axle diff. 210/220 open SAF PD oil |
1Y0 | 1.1 litres | 1.0 litres | > Fill quantity 6 mm +/- 2 mm -- Dang -- |
| Cayenne [D34] Cayenne S [D6V -E0A] Cayenne GTS [D6V +E0W] Cayenne Turbo [D53] Cayenne S Diesel [DD3] | EM rear axle diff. 210/220 SAF carbon mod. oil |
1Y1 | 1.4 litres | 1.3 litres | Lower edge of filler screw |
EM: Electromechanical rear-diff. lock/1Y0 without rear-diff. lock/1Y1 with rear-diff. lock
Information
Use only oil approved by Porsche.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- Vehicle must be horizontal in order to fill rear final drive.
- Unscrew oil inspection plug -A-
.

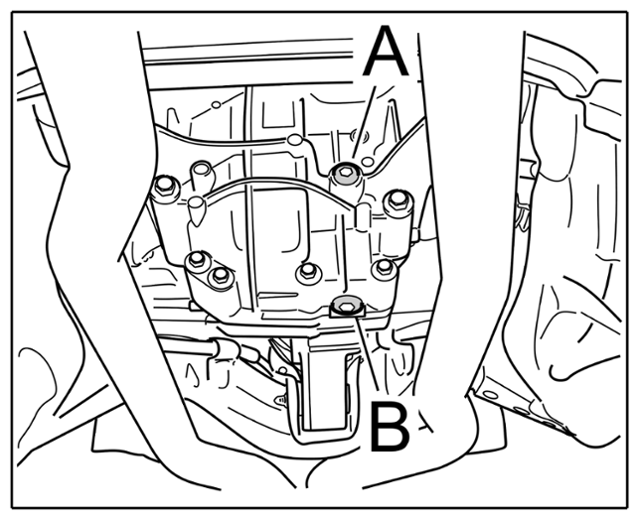

Inspection/drain plug for rear final drive
- Use > VAS 6563 - manual metering pump, Porsche set to fill oil into inspection plug opening -A-
.
- 2.1 The oil fill quantity is specified in the table Oil adjustment specifications for front-axle final drive and rear axle differential.
- 2.2 The oil level in the final drive can be measured using an angled piece of wire, for example.
- Screw in oil inspection plug -A-
with a new sealing ring. > Tightening torque 35 (26 ftlb.) Nm
-- Dang --
Inspection/drain plug for rear final drive
