Checking Oil For Rear Final Drive

Information

• Vehicle must be horizontal in order to check fluid level in rear final drive.

1. Unscrew oil inspection plug -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

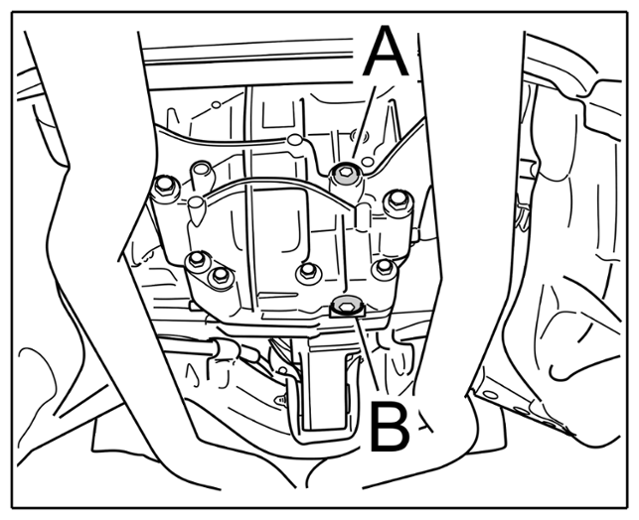

   Inspection/drain plug for rear final drive

2. me oil level is correct if the oil reaches the lower edge of the inspection window.

   Information

   Use only oil approved by Porsche.

3. If this is not the case, top up the oil.

   > WM, 399055 CHANGING OIL FOR ALL-WHEEL FINAL DRIVE  - section on "Filling"

4. Screw in oil inspection plug -A-  with a new sealing ring. > Tightening torque 35 (26 ftlb.) Nm  -- Dang --

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inspection/drain plug for rear final drive
