Installing All-Wheel Final Drive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

VAG bolts

The front right fastening screw for the four-wheel final drive -left arrow- can only be screwed in with the front-axle carrier lowered.

CAUTION: Risk of damage to ATF lines and pressure line for power steering.
→ Protect ATF lines with water hose or similar.
→ The servo line must not be crushed or stretched.

Information

A second fitter is required for removing/installing the four-wheel final drive.

Swivel left flange of final drive in over the front-axle carrier.
Rotate drive flange upwards and install final drive through the front-axle carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing all-wheel final drive

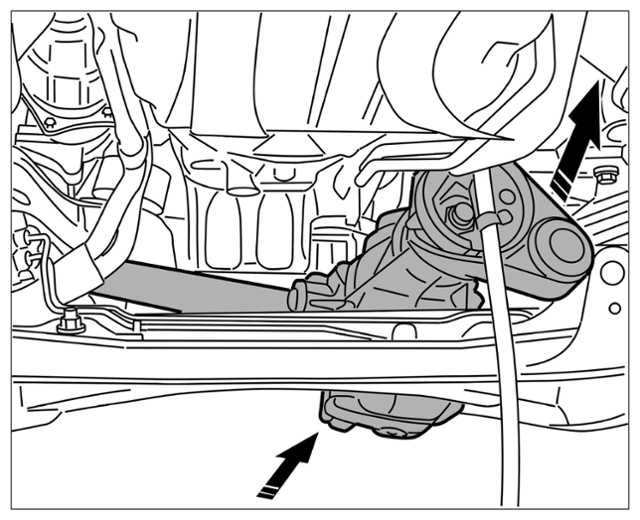

Insert right drive shaft into output flange and place final drive into the mounts on the front-axle carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Movement sequence for installing all-wheel final drive

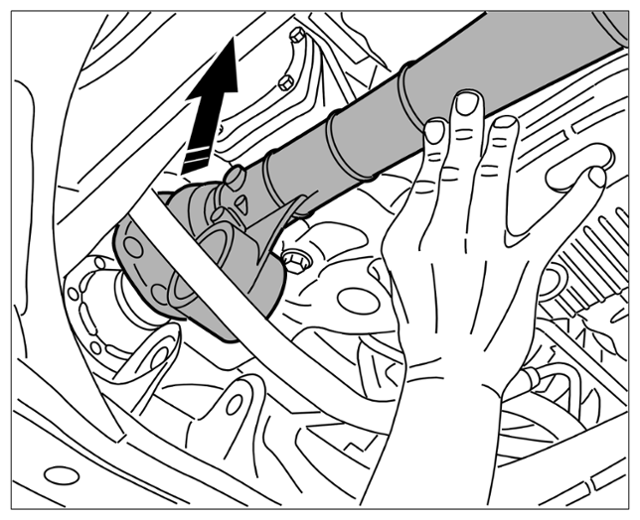

Fit left drive shaft by lifting the final drive output flange.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting left drive shaft

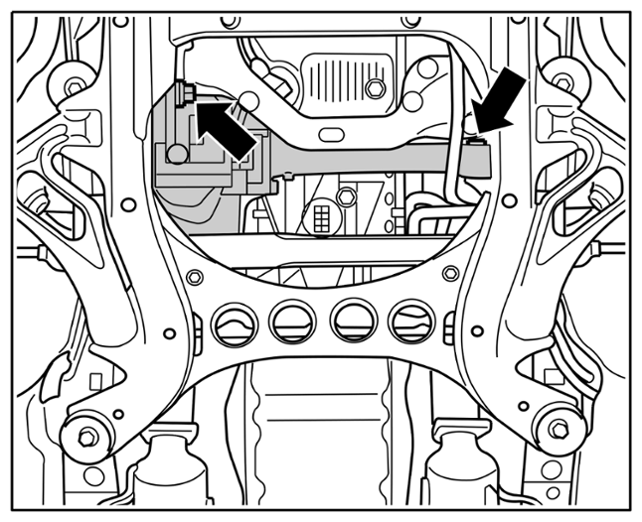

Fit fastening screws -arrows- for all-wheel final drive and screw for drive flange.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

VAG bolts
Raise front-axle carrier with unit lifting platform until it is touching the body. Position vent line at the same time.

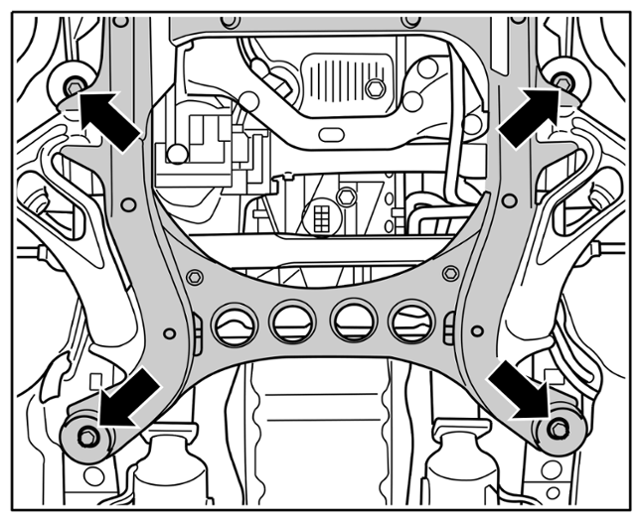

Screw in bolts -Arrows- on front-axle carrier.
For tightening torques, see > 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts on front-axle carrier

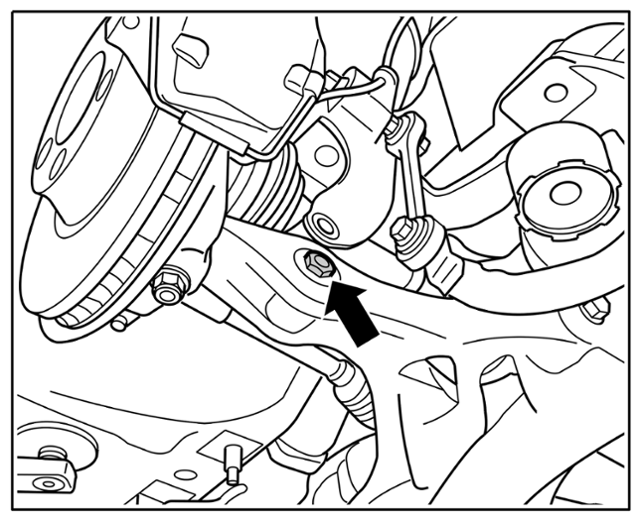

Screw in bolt -arrow- connecting spring strut to trailing arm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolt connecting spring strut to trailing arm

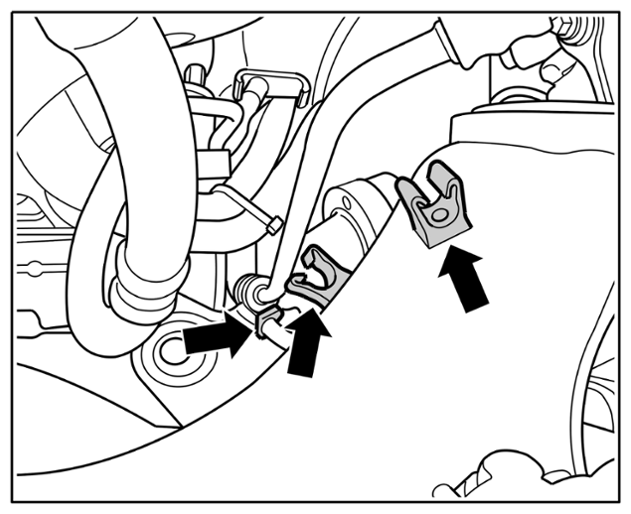

Engage servo line in the three holders -arrows- on the front-axle carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo line holders

Information
- Screws which are tightened with a torque angle must be replaced with new ones.
Tighten fastening screw for all-wheel final drive. > Initial tightening 90 (67 ftlb.) Nm -- Dang -- > Final tightening 90°
Install cover plate for all-wheel final drive by screwing in and tightening three fastening screws. > Tightening torque 10 (7.5 ftlb.) Nm -- Dang --
Information
- Screws which are tightened with a torque angle must be replaced with new ones.
Screw in drive shaft screws.
Connect steering column to steering gear. Screw in new screw.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering column mounting
Install cover plate on the steering.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover plate on steering
Connect Servotronic plug to the steering gear.
Remove special tool > VW552 - spring compressor from the spring strut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of spring compressor

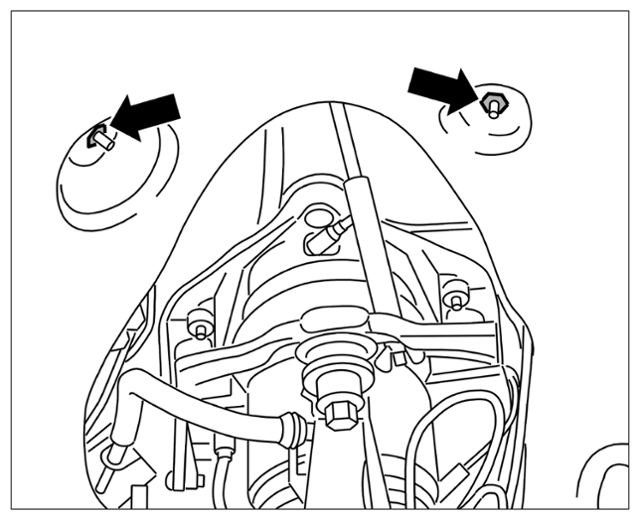

Screw in plastic nuts -arrows- on front right wheel housing liner.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel housing liner mount

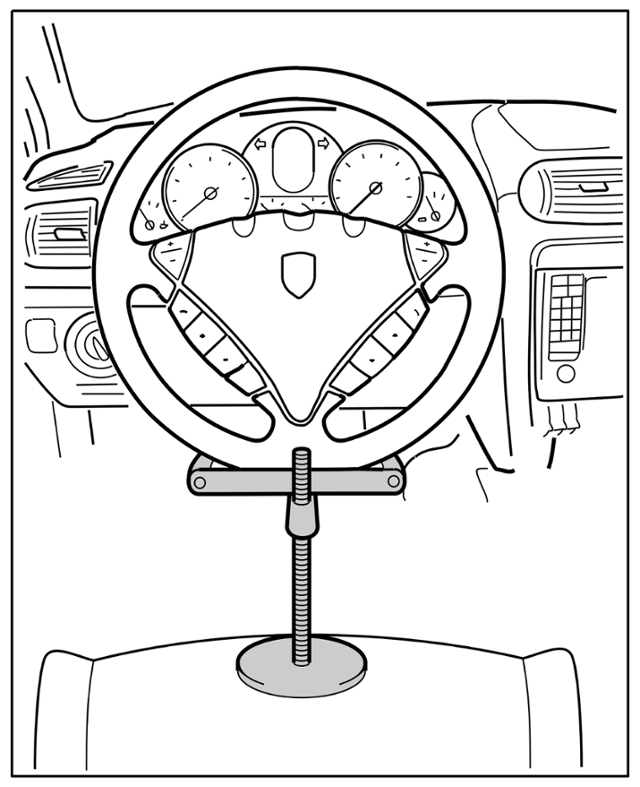

Remove steering-wheel holder -figure- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steering wheel holder
Tighten bolts -Arrows- on front-axle carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bolts on front-axle carrier
