Old version without retrofit set

Information

For the Cayenne S Diesel (V8), it may be necessary to convert the > VAS 6832/1A - Assembly Fixture - Cayenne!

Use

> VAS 6832/2 - Assembly Fixture Supplement Set - Cayenne for this.

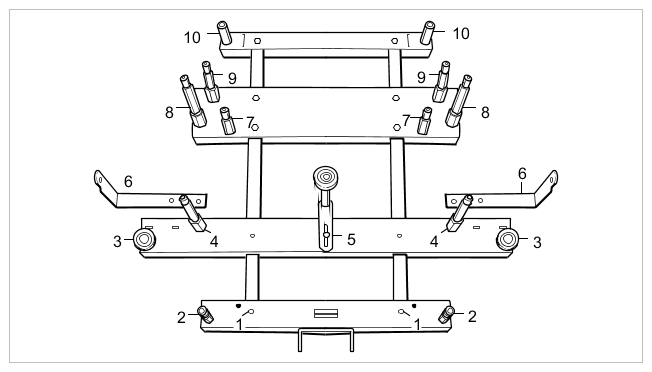

G16315141Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Complete structure of the base carrier - old version

2, 5 and 8  Not used for removing engine!
Screw in mounting mandrel for front-axle carrier at the front (instead of "2")
