Tools And Materials: Notes

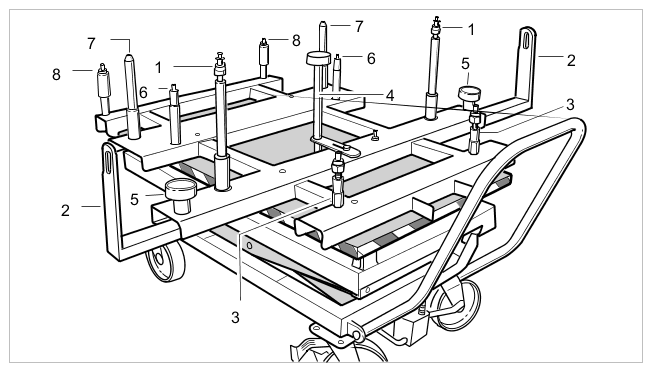

Master Gear unit elevating platform
| 1 | Assembly mandrel => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier |
| 2 | Wheel hub holder => Secures the spring struts to prevent them from tipping. Inserted from the side into the second cross member from the front |
| 3 | Assembly mandrel => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 1 in base carrier |
| 4 | Support => Not used here. |
| f | Wishbone support => Used in conjunction with -5- to protect the wheel suspension and spring struts from damage. |
| 6 | Assembly mandrel => For mounting on the front-axle carrier at the rear. Item 3 in base carrier |
| 7 | Assembly mandrel => Guide for positioning the lifting platform into the body; first moves into a bore in the body for centring roughly. Item 4 in base carrier |
| 8 | Assembly mandrel => For mounting on the transmission cross member. Item 5 on base carrier |

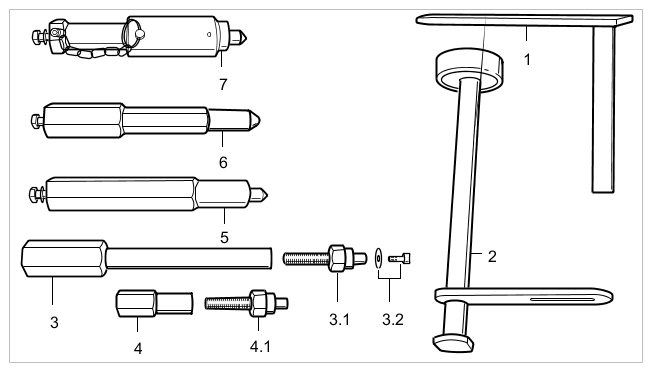

Tool overview
| 1 | Wheel hub holder => Secures the spring struts to prevent them from tipping. |
| 2 | Support => Prevents the engine from tipping backwards. Not generally used. |
| 3 | Lateal mounting mandrel for engine carrier => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and for height adjustment. Item 2 in base carrier |
| 3.1 | Support with height adjustment => Screwed into part 3. |
| 3.2 | Protection against tipping => Screwed into Part 3.1. Prevents the engine from tilting forward. |
| 4 | Front front-axle carrier mounting => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and f or height adjustment. Item 1 in base carrier |
| 4.1 | Support with height adjustment => Screwed into part 4. |
| 5 | Rear front-axle carrier mounting => Item 3 in base carrier |
| 6 | Mounting in the body => Item 4 in base carrier |
| 7 | Mounting for transmission cross member => Item 5 in base carrier |
