New version with retrofit set
Information
For the Cayenne S Diesel (V8), it may be necessary to convert the > VAS 6832/1A - Assembly Fixture - Cayenne!
Use
> VAS 6832/2 - Assembly Fixture Sup element Set - Cayenne for this.

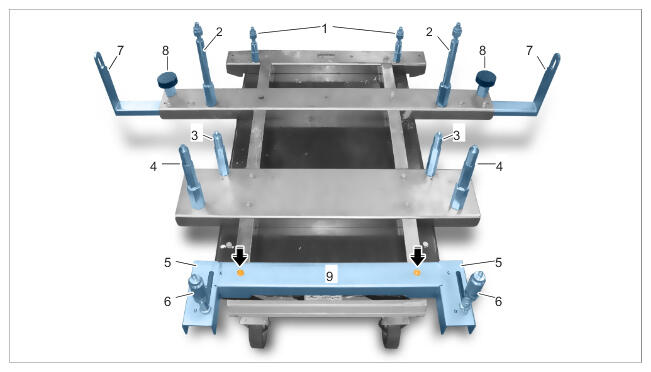

Complete setup - scissor-action assembly platform VAS 6832 with assembly device VAS 6832/1A and retrofit set VAS 6832/2
| 1 | Mounting mandrel for front front-axle carrier |
| 2 | Mounting mandrel for engine carrier |
| 3 | Mounting mandrel for rear front-axle carrier |
| 4 | Mounting mandrel for centring in the body. |
| 5 | Position of mounting mandrel on transmission cross member Cayenne Diesel/Hybrid Cayenne/S/GTS/Turbo/Turbo S |
| 6 | Position of mounting mandrel on transmission cross member Cayenne S Diesel |
| 7 | Bracket for wheel carrier |
| 8 | Mounting for lower wishbone |
| 9 | > VAS 6832/2 - Assembly Fixture Supplement Set - Cayenne |
| Arrows | Nuts and screws |
- Convert engine/transmission mounting.
- 1.1 Unscrew nuts -arrows - .
- 1.2 Remove nuts and screws.
- 1.3 Remove old cross member and replace it with new cross member -9- .
- 1.4 Screw in and tighten screws and nuts.
