Installing Sealing Ring For CARDAN Flange

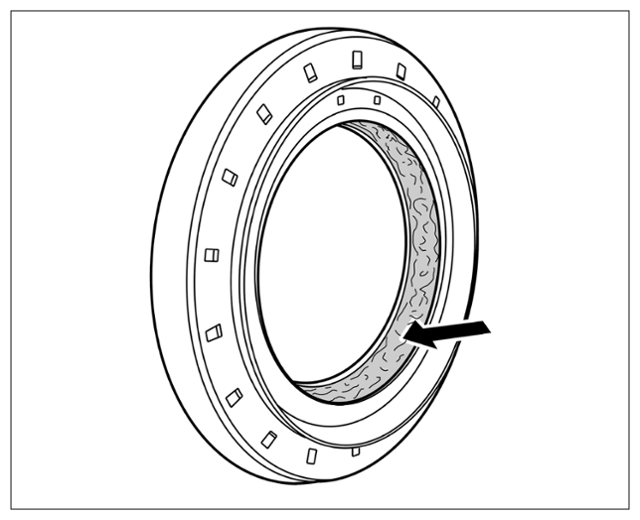

1. 1.1  Half-fill the space between the sealing and dust lips -arrow-  on the new sealing ring with sealing grease.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Preparing sealing ring

2. 1.2  Mask the splines on the operator shaft with adhesive tape to prevent damage to the new sealing ring.
3. 1.3  Slide the sealing ring as far as it will go onto the final drive.

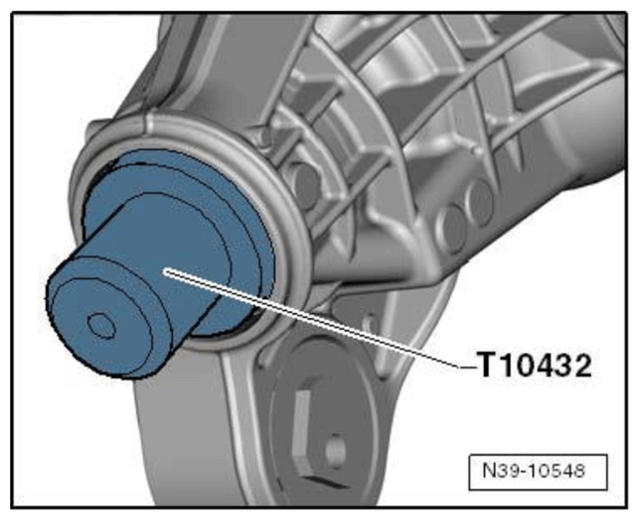

4. 1.4  Tap the sealing ring in as far as it will go using > T10432 - assembly tool. Do not bend the sealing ring. > Installing sealing ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing sealing ring

5. 1.5  Remove adhesive tape.

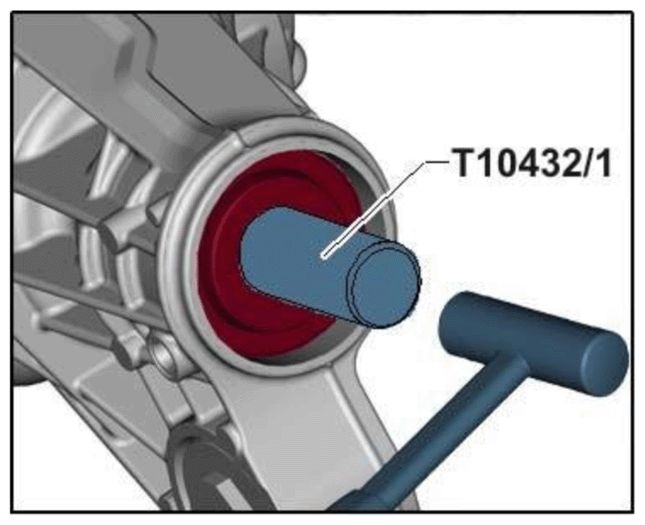

1. 2.1  Tap in new dust boot using thrust piece T10432/1.  > Fitting dust boot

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting dust boot

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

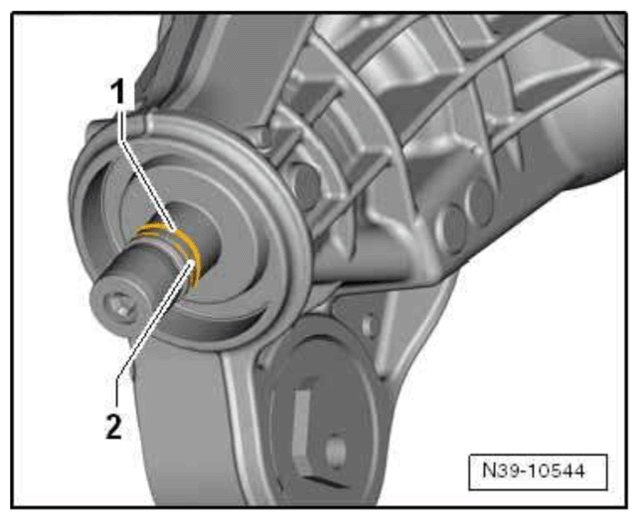

Sealing ring and circlip

1. 1.1  Half-fill the space between the sealing and dust lips on the new sealing ring with sealing grease.
2. Mask the splines on the operator shaft with adhesive tape to prevent damage to the new sealing ring.
3. 1.3  Slide the sealing ring as far as it will go onto the final drive.
4. 1.4  Tap the sealing ring in as far as it will go using > T10431 - assembly tool. Do not bend the sealing ring. > Fitting dust boot
5. 1.5  Remove adhesive tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing sealing ring

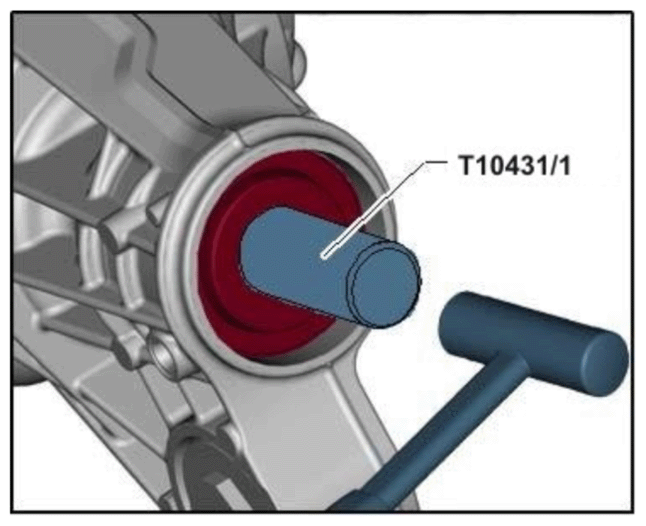

1. 2.1  Tap in new dust boot using pressure piece T10431/1.  > Fitting dust boot

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting dust boot

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing ring and circlip
