Removing Servo Motor On Transfer Gear

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

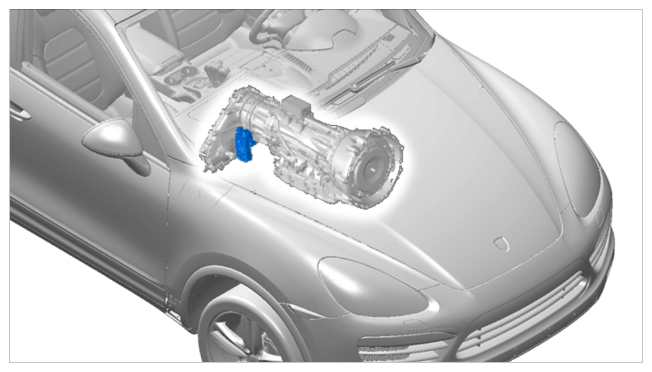

Installation position of servo motor on transfer gear

1. Release electric plug connection on wire harness -1-  for servo motor -a-  and pull it off -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

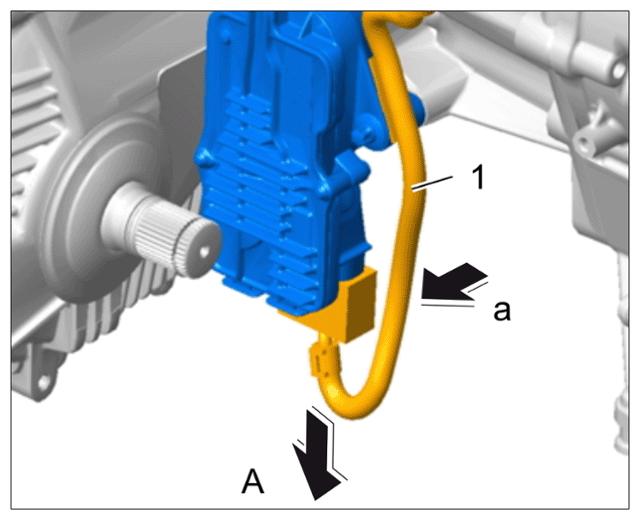

   Electric plug connection for servo motor

2. Release fixing clip -3-  on wire harness at the servo motor -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

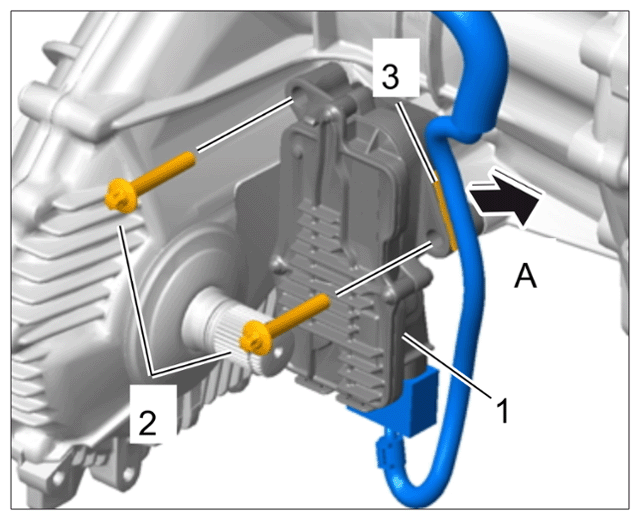

   Fixing clip for servo motor

3. Unscrew fastening screws -2-  at the servo motor.
