Installing Control Unit For Rear-Differential Lock

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

1. Push control unit for rear-differential lock into the holder until it engages securely.
2. Push control unit for rear-differential lock -3-  and holder into the guides -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

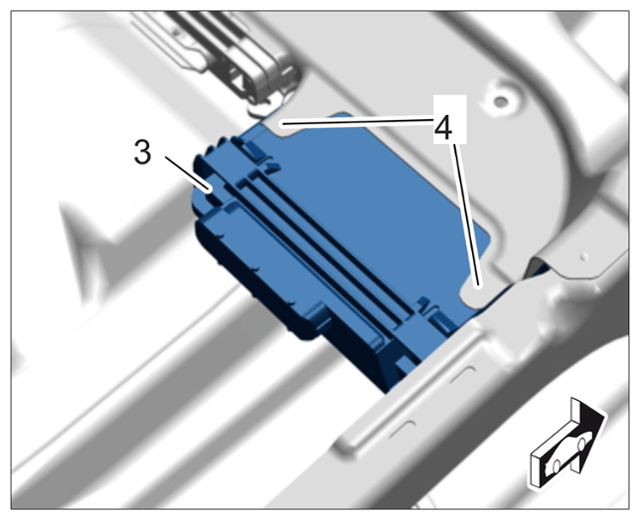

   Pushing in control unit for rear-differential lock

3. Tighten fastening screw -2-  . > Tightening torque 8 (6 ftlb.) Nm  -- Dang --

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

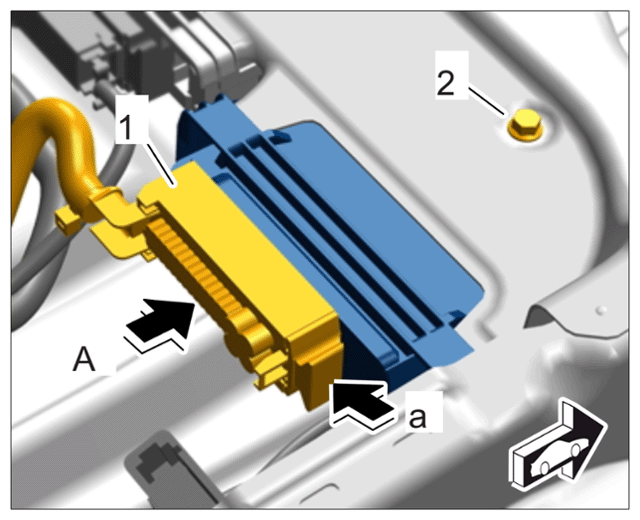

   Plugging in connector on control unit for rear-differential lock

4. Plug in electric plug connection -1-  (-A-  ) and lock it -a-  .
5. Position the carpet.
