Removing Transfer Gear Vent Line

Pull vent line -1- off the breather adapter/transfer gear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Routing of vent line 5

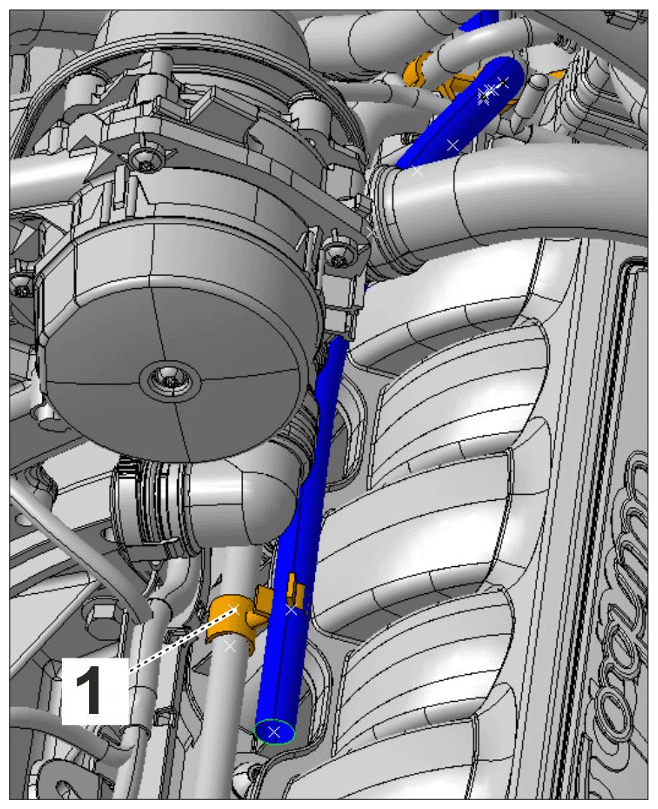

Loosen vent line with clip -1- from the tank vent line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Routing of vent line 3

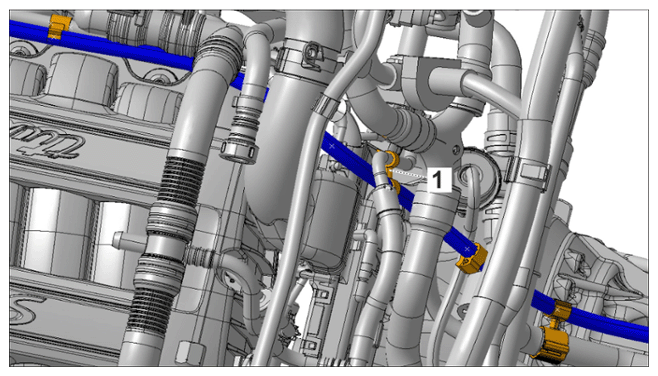

Loosen clip -1- from the oil extraction line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Routing of vent line 2

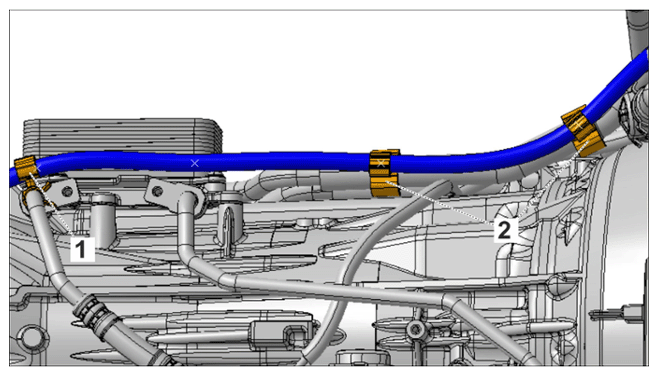

Loosen clip -1- on ATF line and clip -2- on coolant line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Routing of vent line 1
