Installing Transfer Gear Vent Line

Information

• Make sure that no sections of the line are trapped.
• Always route the vent line horizontally or at a constant upward angle.
• It can be installed in any sequence as long as it is routed according to specifications at the end.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

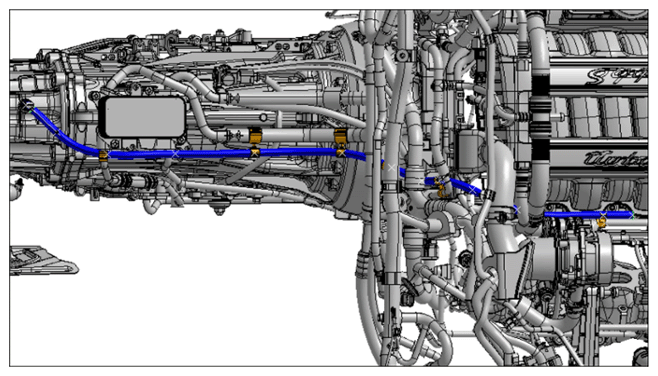

Vent line routing

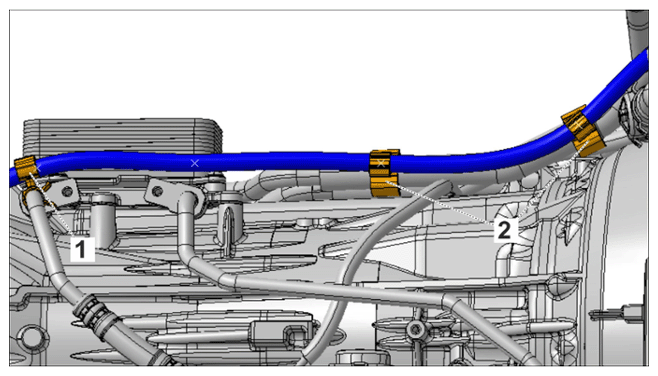

1. Fasten clip -1-  on ATF line. Turn clip -2-  on coolant line to the 3 o'clock position in direction of travel and fasten it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Routing of vent line 1

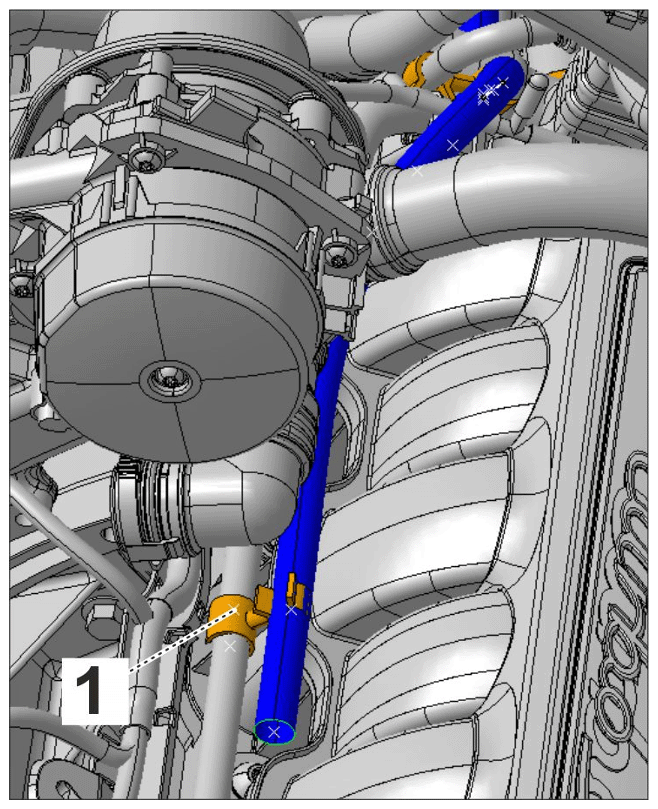

2. Fasten clip -1-  on oil extraction line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Routing of vent line 2

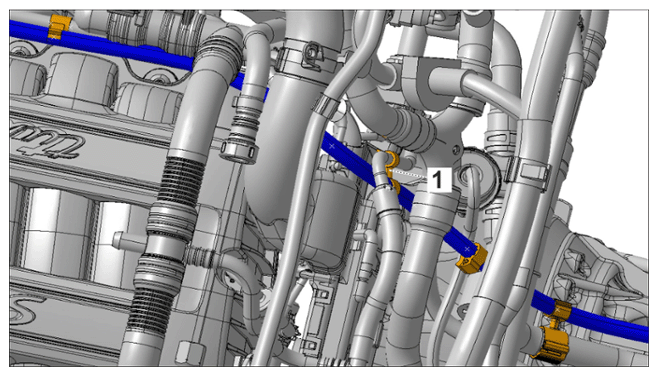

3. The clip -1-  is not included in the scope of delivery. The clip is supplied separately. Fasten clip on tank vent line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Routing of vent line 3

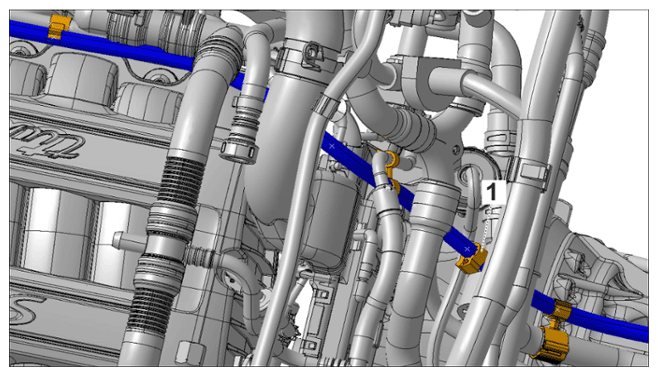

4. To prevent chafing at the vacuum line, fit toothed ring -1-  on the vent line. The toothed ring -1-  is not included in the scope of delivery. The toothed ring is supplied separately.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Routing of vent line 4

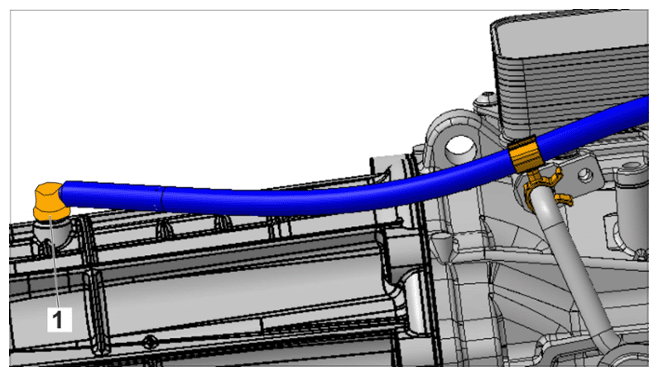

5. Connect vent line -1  to breather adapter/transfer gear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Routing of vent line 5
