Removing Rubber Mounting For Rear Final Drive, Output Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

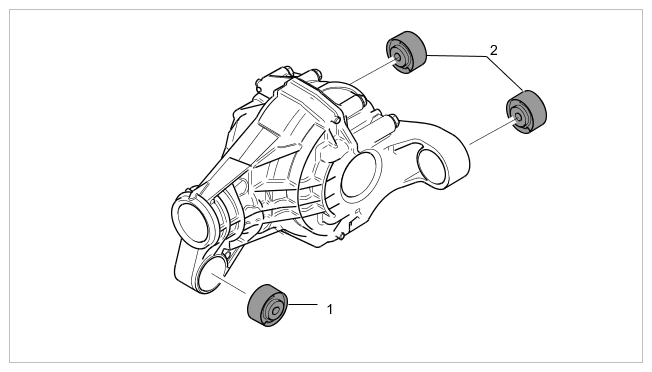

Rubber mounting on output side

1. Mark rubber mounting with respect to transmission housing in installation position -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

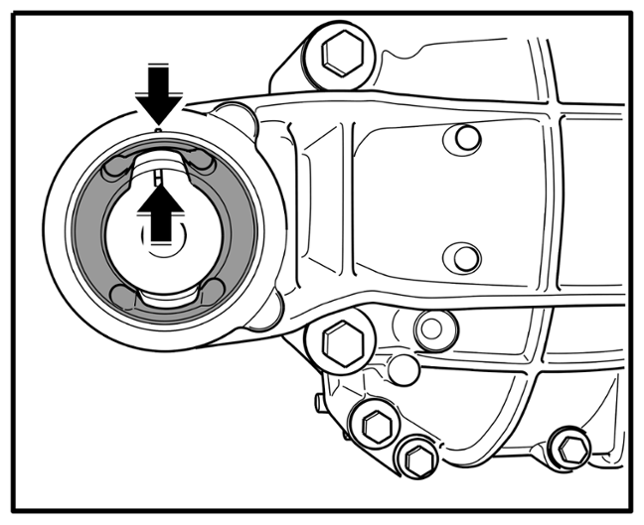

   Marking rubber mounting

2. Position special tool > 9716 - assembly fixture on rubber mounting > Removing rubber mounting.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

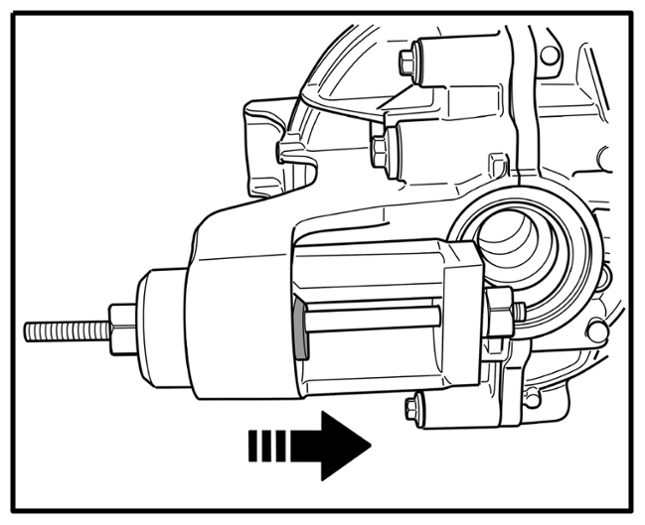

   Removing rubber mounting

3. Remove rubber mounting -direction of arrow-  .
