Removing Rubber Mounting For Rear Final Drive, Drive Side

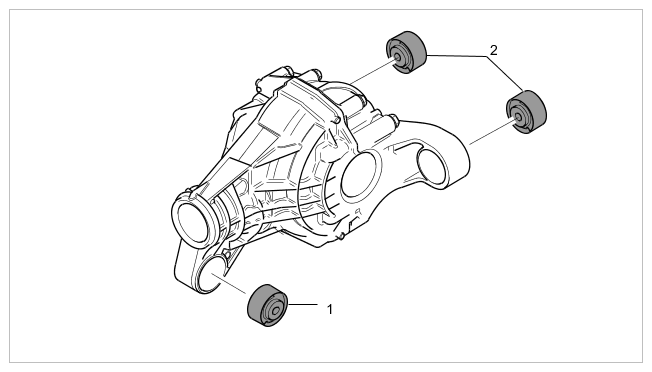

G16315046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber mounting, drive side

  1. Fit special tool on rubber mounting and pull out rubber mounting.

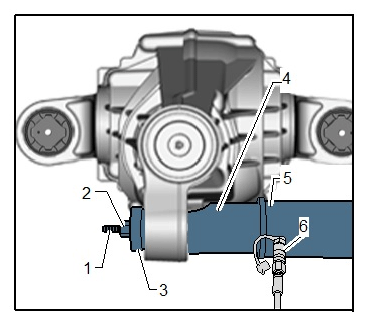

G16315047Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber mounting for output side

1  Threaded rod from > T10230/50-54 - supplementary set
2  Nut from > T10230/50-54 - supplementary set
3  T10435/3  from > T10435 - assembly tool
4  T10435/2  from > T10435 - assembly tool
5  > VAS 6178 - Hydraulic cylinder
6  > VAS 6179 - Foot Pump
