Installing Rubber Mounting For Rear Final Drive, Drive Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

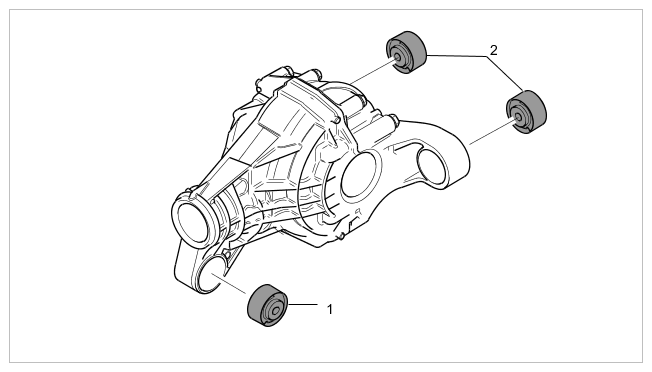

Rubber mounting on drive side

Information

Noises in drive train.

• Installation position of rubber mounting bulge is incorrect. Rubber mounting bulge must be installed vertically into the housing.
• Installation position of mounting in housing is incorrect. Check installation dimension of mounting with respect to the housing.

1. Position special tool > 9716 - assembly fixture on rubber mounting > Installing rubber mounting on drive side  and align the markings.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing rubber mounting on drive side

   Information

   Noises in drive train.

   • Installation position of rubber mounting bulge is incorrect. Rubber mounting bulge must be installed vertically into the housing.
   • Installation position of mounting in housing is incorrect. Check installation dimension of mounting with respect to the housing.

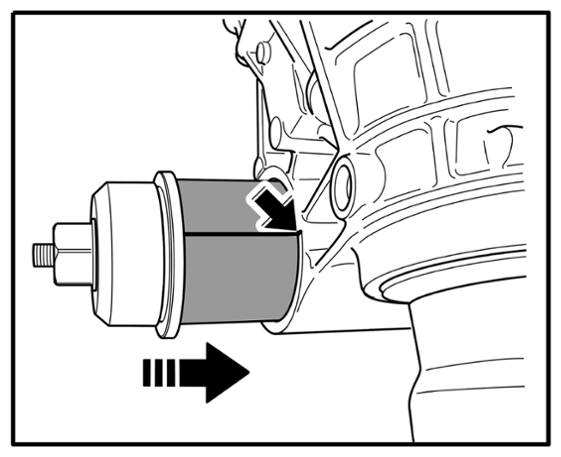

2. Press rubber mounting flush -direction of arrow-  into the housing.
