Removing Rubber Mounting For All-Wheel Final Drive, Right Output Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber mounting on right output side

1. Mark rubber mounting with respect to transmission housing in installation position -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking rubber mounting

2. Position special tool > 9716 - assembly fixture on rubber mounting > Removing right rubber mounting.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

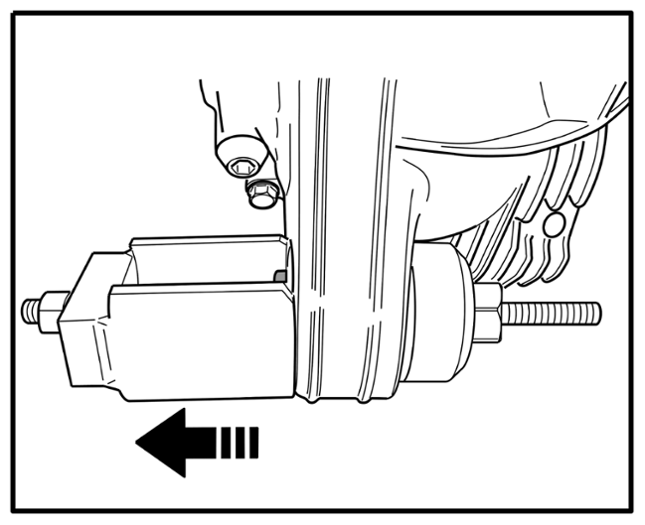

   Removing right rubber mounting

3. Remove rubber mounting in direction of arrow -arrow-  .
