Removing Rubber Mounting For All-Wheel Final Drive, Drive Side

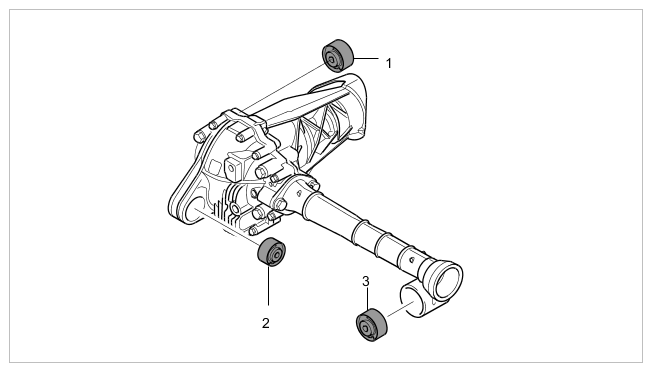

G16315023Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber mounting, drive side

  1. Mark rubber mounting for transmission housing at the installation position.
  2. Fit special tool on the rubber mounting and pull out rubber mounting.

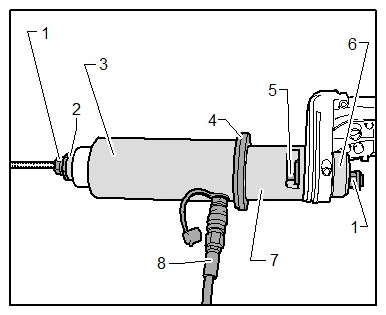

G16315024Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber mounting on drive side - removal

1  Nuts from > T10230/50-54 - supplementary set
2  Thrust washer from > T10435 - assembly tool
3  > VAS 6178 - Hydraulic cylinder
4  T10435/1  from > T10435 - assembly tool
5  Threaded rod from > T10230/50-54 - supplementary set
6  T10435/5  from > T10435 - assembly tool
7  T10435/2  from > T10435 - assembly tool
8  > VAS 6179 - Foot Pump
