Installing Rubber Mounting For Final Drive, Left Output Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

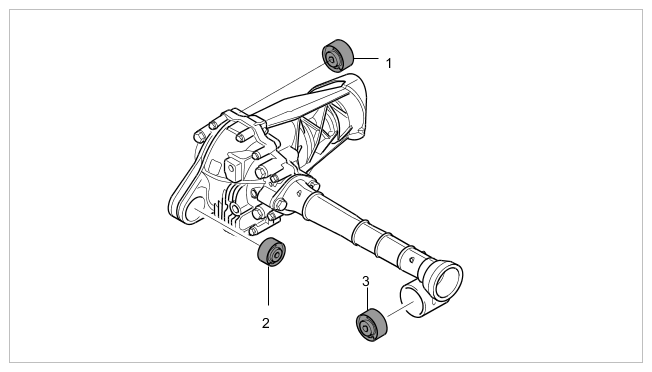

Rubber mounting for left output side

Information

Noises in drive train.

• Installation position of rubber mounting bulge is incorrect. Rubber mounting bulge must be installed vertically into the housing.
• Installation position of mounting in housing is incorrect. Check installation dimension of mounting with respect to the housing.

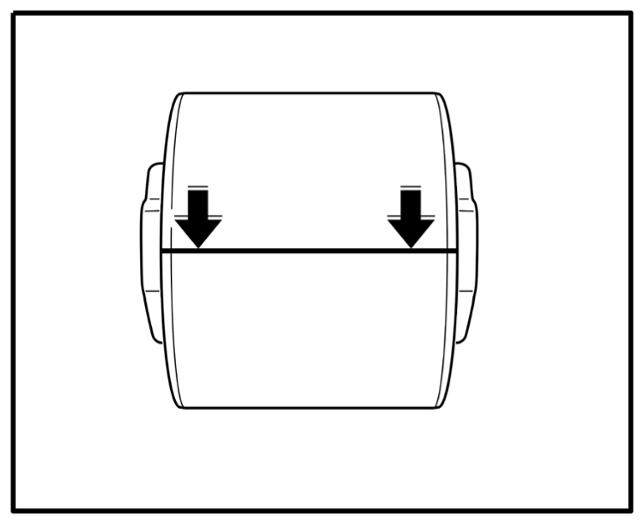

1. Mark centre of bulge in rubber mounting. -arrows-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking centre of rubber mounting

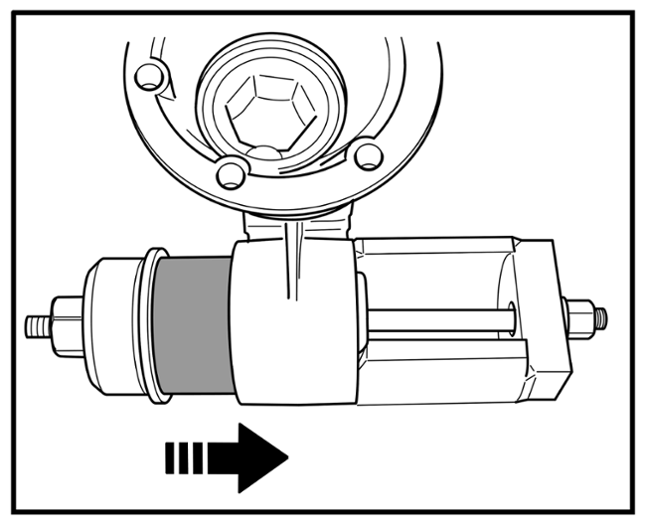

2. Position special tool > 9716 - assembly fixture on rubber mounting > Fitting bearing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting bearing

3. Press rubber mounting into the housing until flush. -direction of arrow-
