Installing Rubber Mounting For All-Wheel Final Drive, Right Output Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

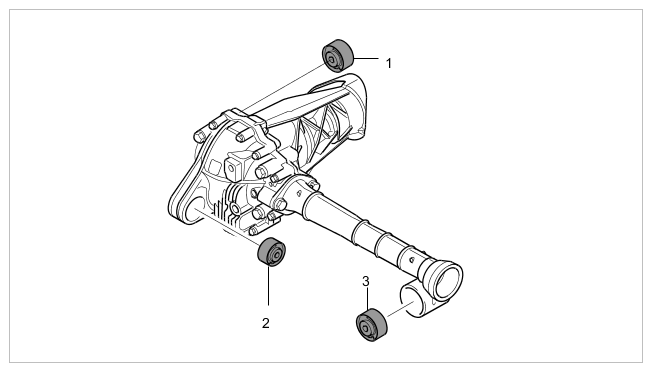

Rubber mounting on right output side

Information

Noises in drive train.

• Installation position of rubber mounting bulge is incorrect. Rubber mounting bulge must be installed vertically into the housing.
• Installation position of mounting in housing is incorrect. Check installation dimension of mounting with respect to the housing.

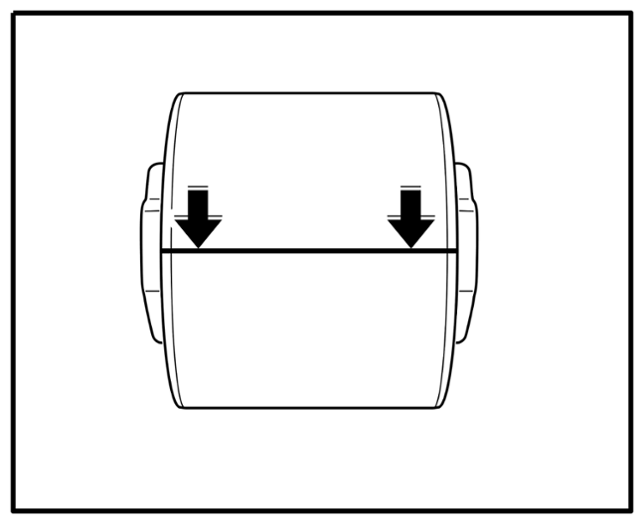

1. Mark centre of bulge in rubber mounting > Marking centre of rubber mounting.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking centre of rubber mounting

2. Position special tool > 9716 - assembly fixture on rubber mounting.
3. Pull in rubber mounting until installation position is reached.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

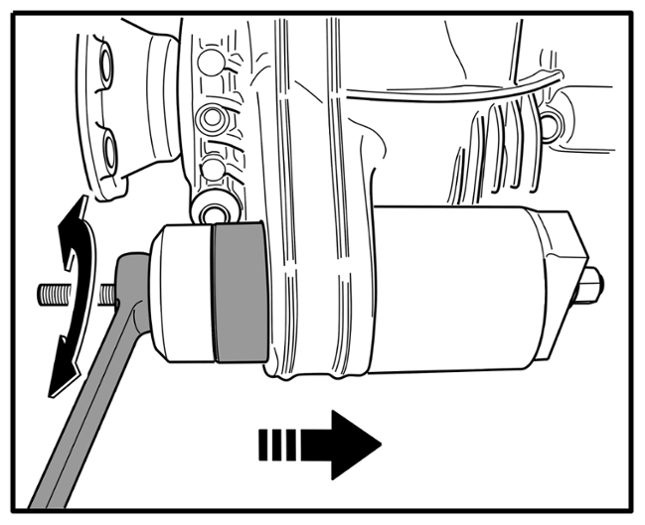

   Installing rubber mounting

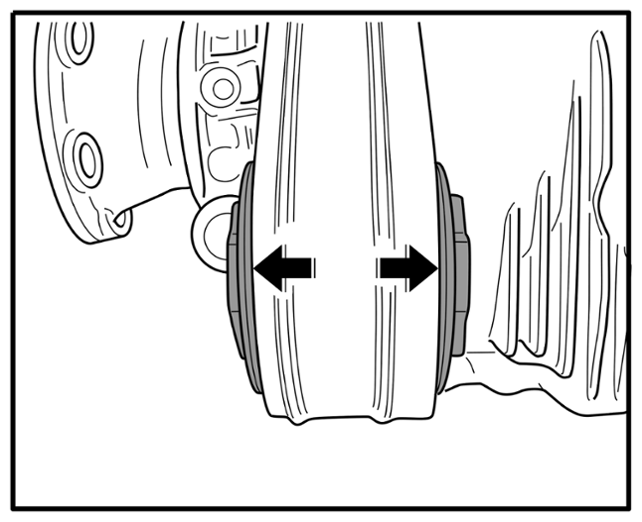

4. The rubber mounting must be centred -arrows-  in the housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installation position of rubber mounting
