Installing Rubber Mounting For All-Wheel Final Drive, Drive Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

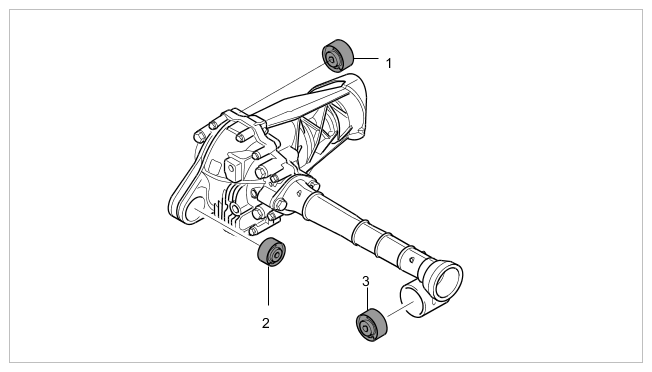

Rubber mounting, drive side

Information

Noises in drive train.

• Installation position of rubber mounting bulge is incorrect. Rubber mounting bulge must be installed vertically into the housing.
• Installation position of mounting in housing is incorrect. Check installation dimension of mounting with respect to the housing.

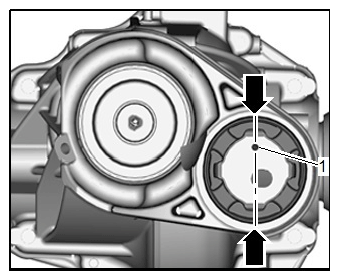

1. Check installation position. The large cut-outs -arrows-  on the rubber mounting must be perpendicular -1-  to the final drive.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installation position of rubber mounting

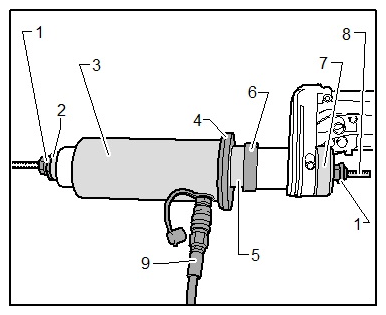

2. Fit rubber mounting on the housing using special tool and pull it in as far as it will go.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber mounting on drive side - installation
