Removing Sealing Ring For Left Flanged Shaft

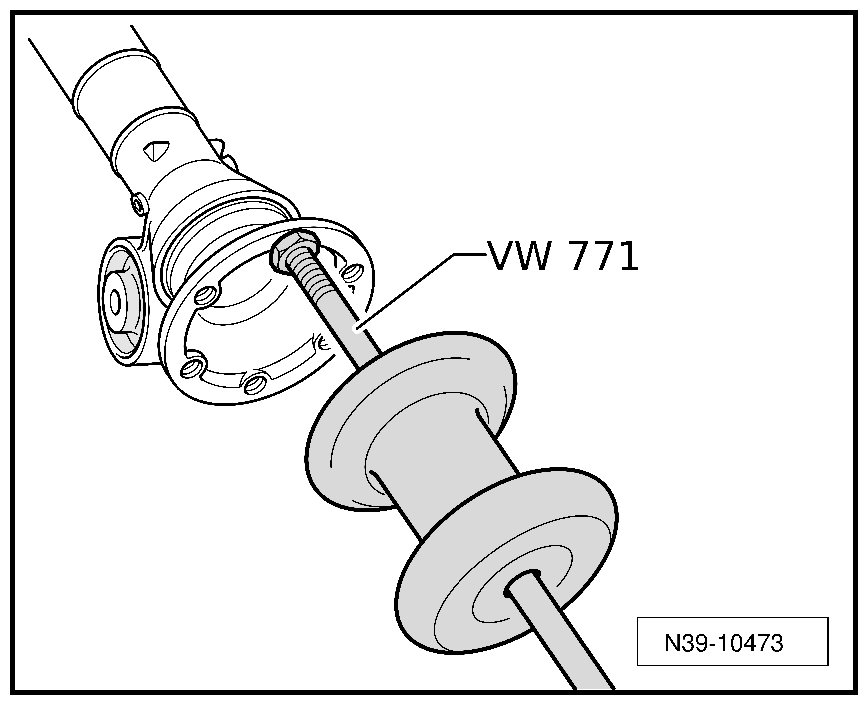

1. Remove flanged shaft with special tool > VW771/1 - Impact tool > Removing flanged shaft.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing flanged shaft

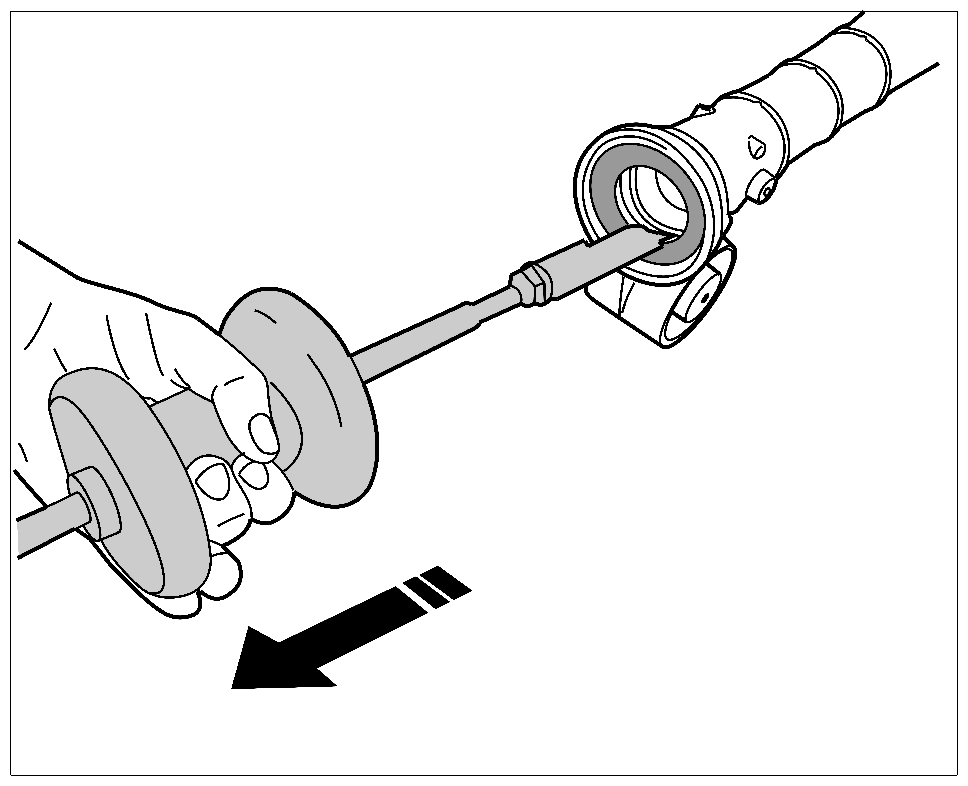

2. Remove sealing ring with special tool > VW771/1 - Impact tool and > VW771/37 - Puller attachment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sealing ring
