Installing Sealing Ring For Right Flanged Shaft

Tap the sealing ring in as far as it will go using > T10436 - pressure piece > Installing sealing ring. Do not bend the sealing ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

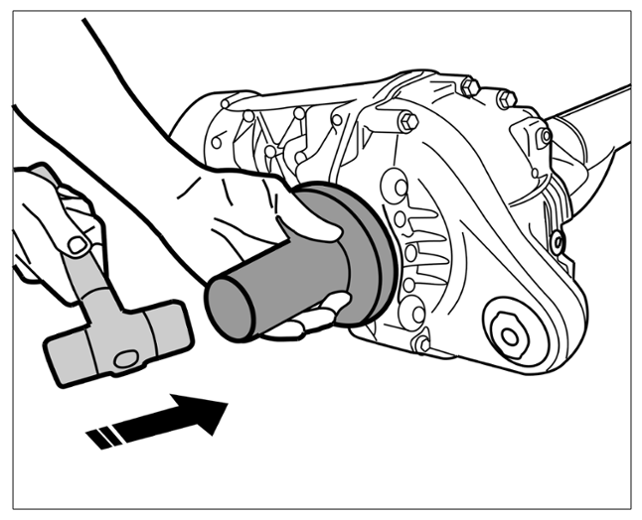

Installing sealing ring
Half-fill the space between the sealing and dust lips -arrow- on the new sealing ring with sealing grease.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

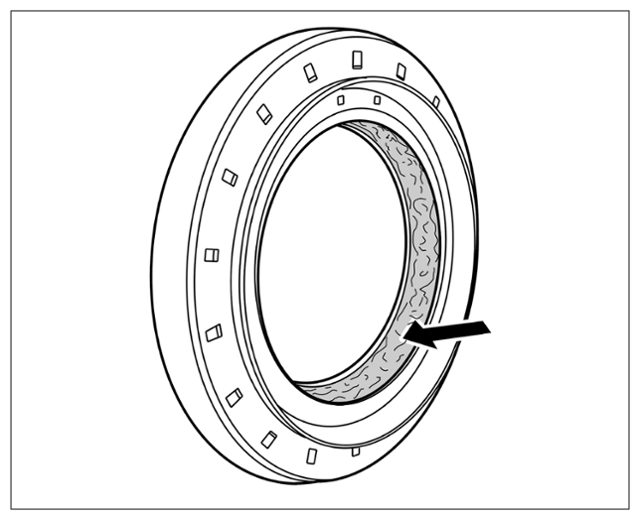

Preparing sealing ring
Replace circlip on flanged shaft > Replacing circlip.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

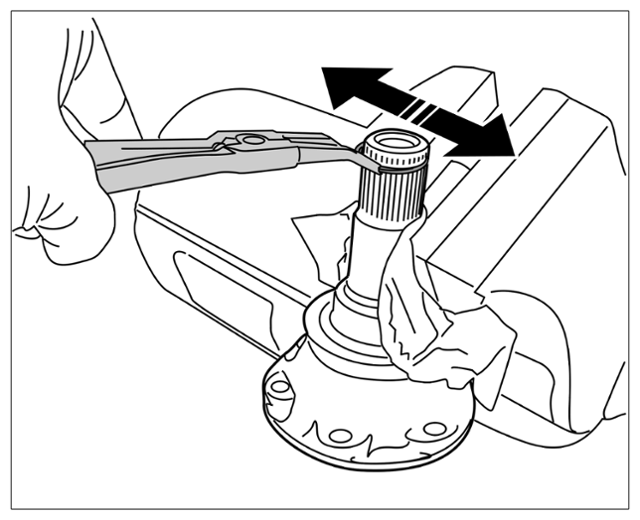

Replacing circlip
Push flanged shaft into transmission until it engages.
