Installing Sealing Ring For Left Flanged Shaft

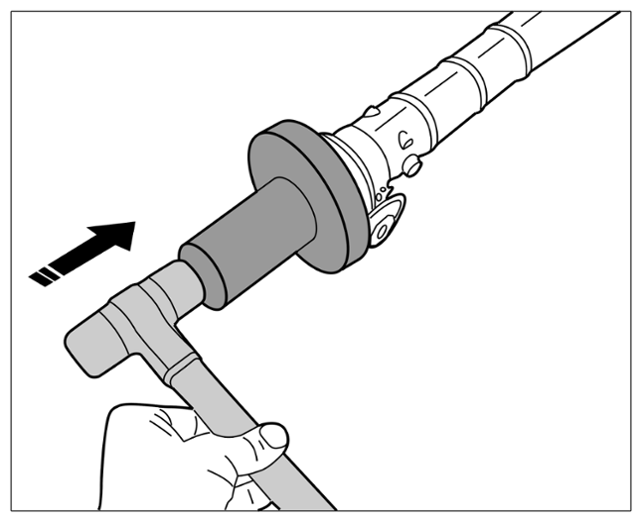

Tap the sealing ring in as far as it will go using > T10260 - pressure piece > Installing sealing ring. Do not bend the sealing ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing sealing ring

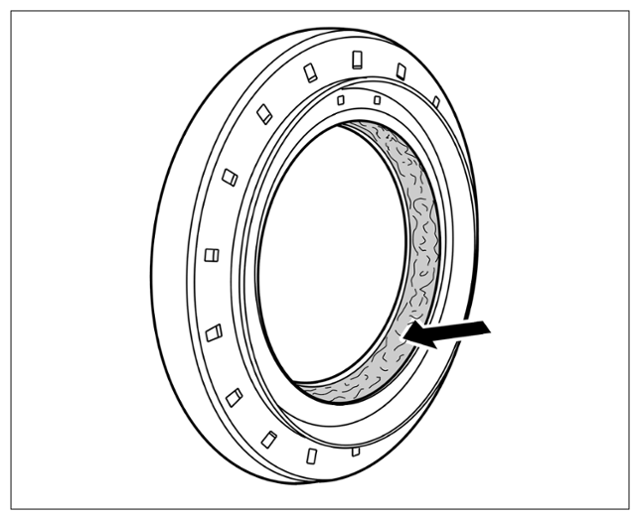

Half-fill the space between the sealing and dust lips -arrow- on the new sealing ring with sealing grease.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing sealing ring

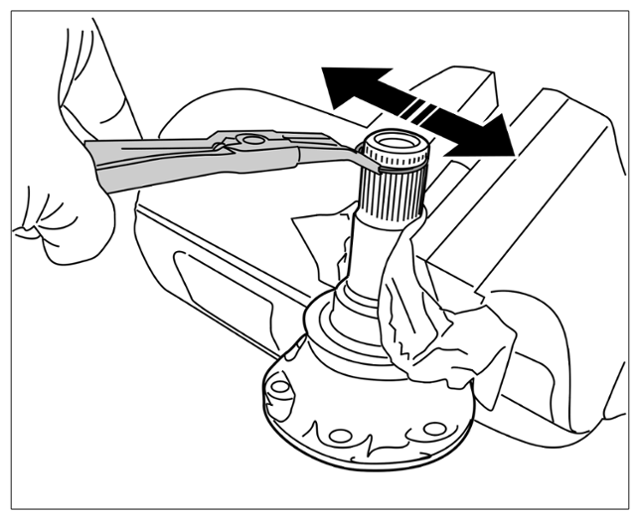

Replace circlip of long flanged shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The example shows a short flanged shaft
Push flanged shaft into transmission until it engages.
