Removing Sealing Ring For CARDAN Flange

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

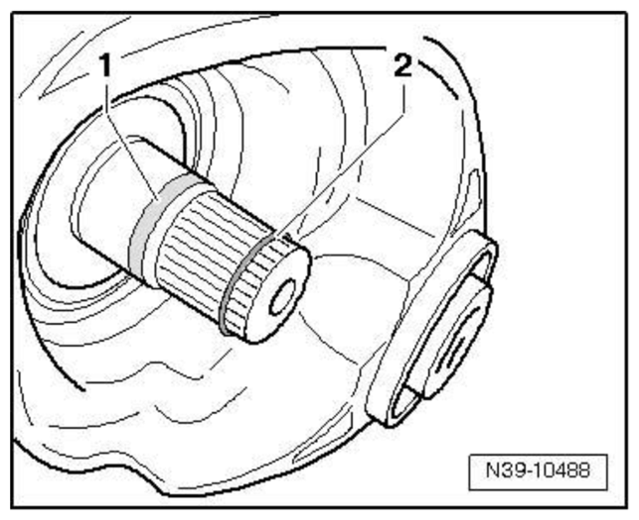

Sealing ring and circlip

1. 2.1  Pierce two holes in the dust boot using a mandrel.
2. 2.2  Screw in tapping screws -arrows-  with a diameter of 4 mm.

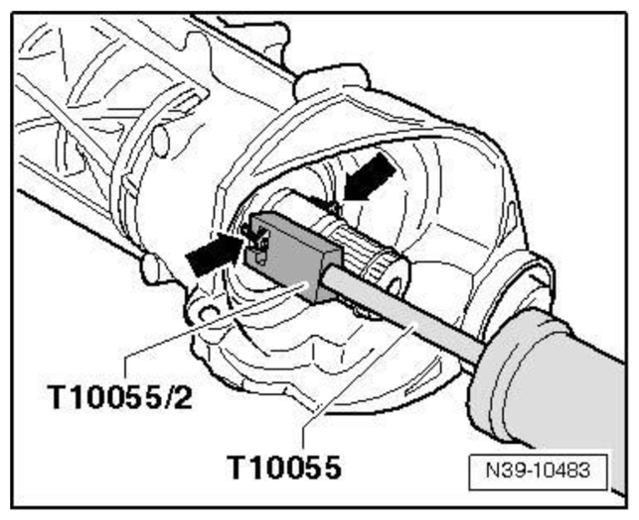

3. 2.3  Pull out dust boot using > T10055 - puller. > Removing dust boot

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing dust boot

Information

Do not screw tapping screw in too far to avoid damaging the bearing behind it.

1. 3.1  Pierce two holes in the sealing ring using a mandrel.
2. 3.2  Screw in tapping screws with a diameter of 4 mm.

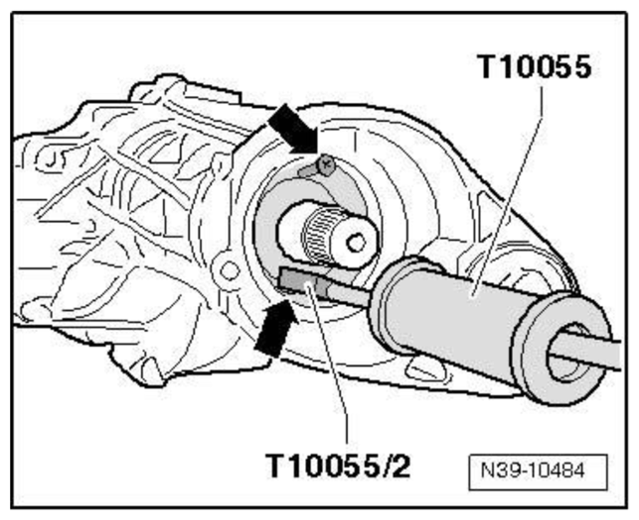

3. 3.3  Pull out sealing ring using > T10055 - puller. > Removing sealing ring

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing sealing ring
