Installing Sealing Ring For CARDAN Flange

1. 1.1  Half-fill the space between the sealing and dust lips -arrow-  on the new sealing ring with sealing grease.
2. 1.2  Mask the splines on the operator shaft with adhesive tape to prevent damage to the new sealing ring.
3. 1.3  Slide the sealing ring as far as it will go onto the final drive.
4. 1.4  Tap the sealing ring in as far as it will go using a thrust piece > T10430 - assembly tool. Do not bend the sealing ring. > Installing sealing ring
5. 1.5  Pull off adhesive tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

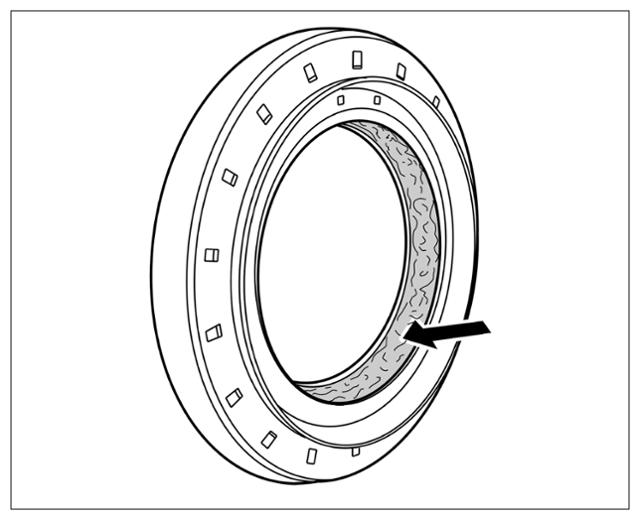

Preparing sealing ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

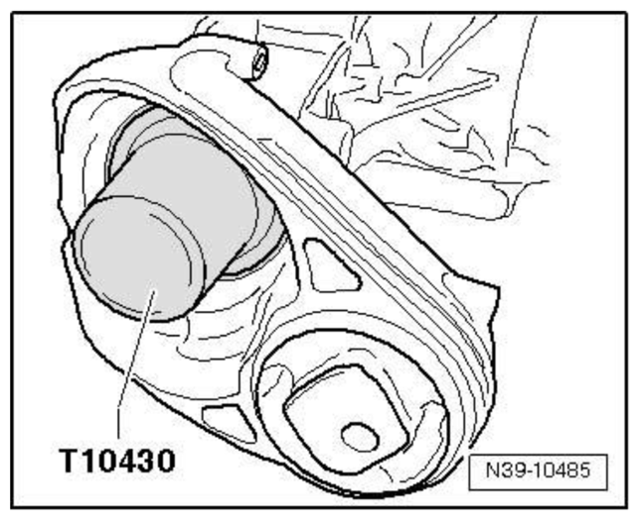

Installing sealing ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

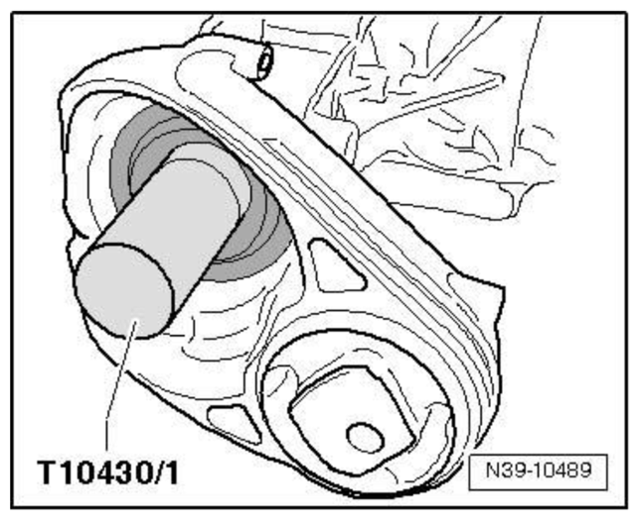

Fitting dust boot

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

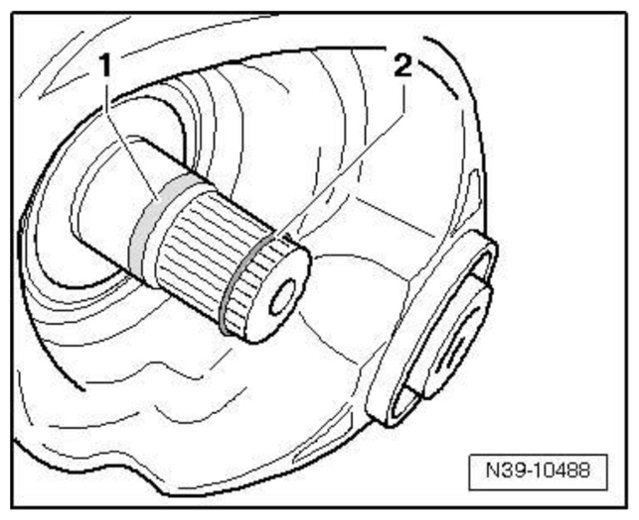

Sealing ring and circlip
