Installing Sealing Ring For Halfshaft Flange (Right Side)

  1. Half-fill the space between the sealing and dust lips -arrow-  with grease.
    G16314980Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing sealing ring

  2. Tap in new sealing ring using special tool > T10181 - thrust piece until the special tool is touching the housing. > Installing sealing ring
    G16314981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing sealing ring

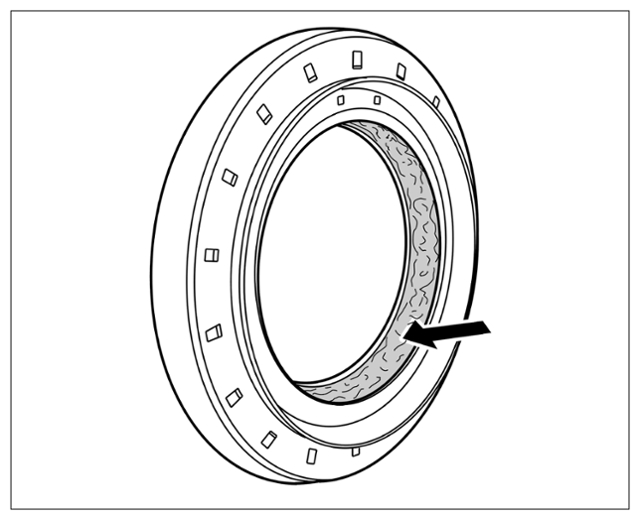

  1. Half-fill the space between the sealing and dust lips -arrow-  with grease.
    G16314984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Preparing sealing ring

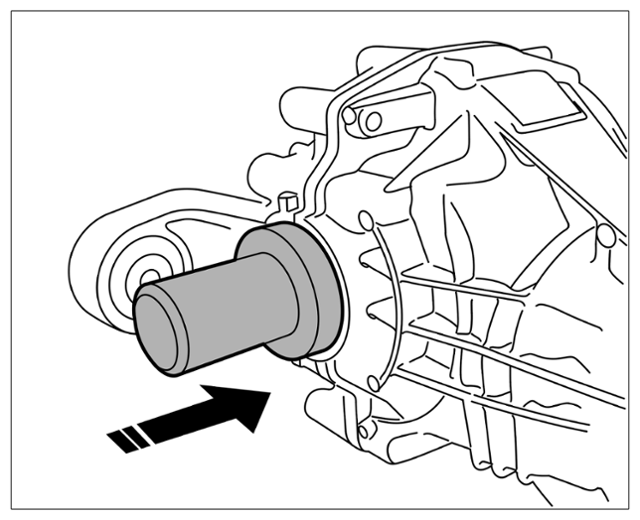

  2. Tap in new sealing ring using special tool > T10433 - thrust piece until the special tool is touching the housing. > Installing sealing ring
    G16314985Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing sealing ring
