Installing Sealing Ring For Halfshaft Flange (Left Side)

Half-fill the space between the sealing and dust lips -Arrow- with grease.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing sealing ring

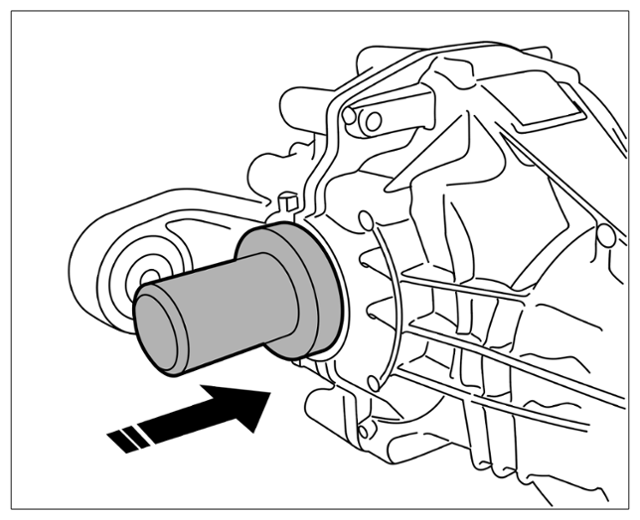

Tap in new sealing ring using special tool > T10256 - thrust piece > T10258 - thrust piece until the special tool is touching the housing. > Installing sealing ring gear (right side pictured)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing sealing ring gear (right side pictured)

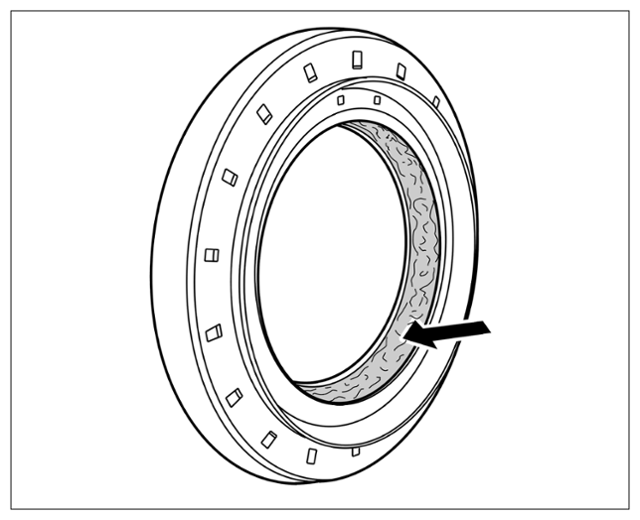

Half-fill the space between the sealing and dust lips -arrow- with grease.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Preparing sealing ring
Tap in new sealing ring using special tool > T10434 - thrust piece until the special tool is touching the housing. > Installing sealing ring (right side)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing sealing ring (right side)
