Shudder/Vibration On Acceleration

Vehicle Type: Cayenne, Cayenne S and Cayenne Turbo (not Hybrid)

Model Year: 2011

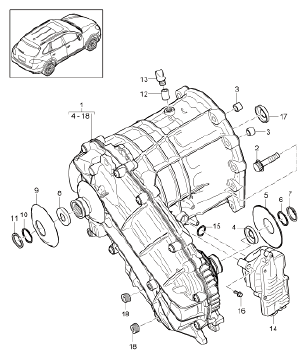

Part Number: 958 341 010 ** (** denotes the 2 digits that identify the part number for the particular model)

Issue: The customer states there is a vibration/shudder in the vehicle when accelerating.

Information:

This vibration/shudder may be due to a problem in the transfer case. A simple way to diagnose this is to unplug the transfer case module at the transfer case. If the vibration/shudder goes away, then the transfer case should be replaced.

NOTE: Due to the change in torque transfer when the module is disconnected, noises (such as wheel bearings or differential bearings) may change. Such noises should not be confused with the transfer case and will require further diagnosis.

If the transfer case requires replacement, be sure to program the control unit, refer to:

Technical Information "Spare Parts Requirements For Transfer Case/AII-wheel Drive Control unit: Missing Offset and Gradient Values on the Transfer Case (66/11)" reviews the procedure for correctly programming in section "Control unit replacement - data from the old control unit can no longer be read out:"

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
