Oxygen Sensors

WARNING: This page is about a different variant/trim than selected.

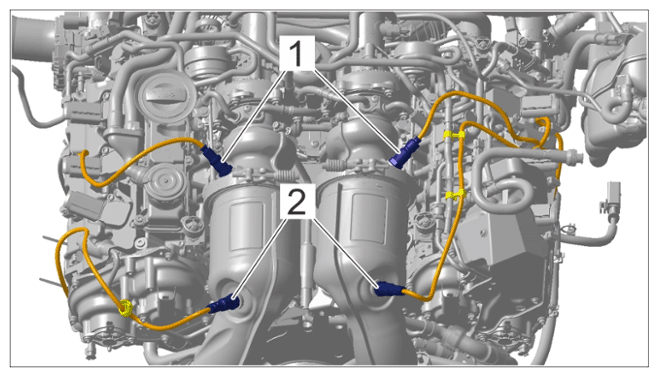

Fig 1: Oxygen Sensors Components Location With Torque Specification - V6 Biturbo
G15878880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensors - V6 biturbo

1  Oxygen sensors upstream of catalytic converter/coat thread with hot screw paste > Tightening torque 52 Nm (38 ftlb.)
2  Oxygen sensors downstream of catalytic converter/coat thread with hot screw paste  > Tightening torque 52 Nm (38 ftlb.)
