Information On Pilot Line Fault Finding

Information

• The pilot line fault is identified by measuring the resistance.
• You need to use  > V.A.G 1526E - Handheld multimeter  , > VAS 6558/9-7 - High-voltage test adapter HVR 40 and  > 9684 - measurement tool set to measure the resistance  .
• Make sure not to damage the pins on the connectors when taking measurements.
• Refer to the wiring diagram for the pin assignment of the connectors.
• The measured values must be documented in the "Pilot line fault finding test log".
• The test log is stored under 2X00IN in the Service Information.
• If a part was replaced or if a connector contact was repaired, the measurement must then be repeated.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

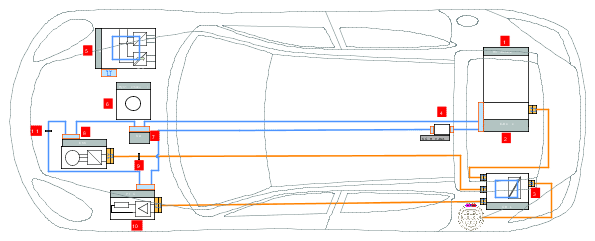

Pilot line fault finding
